01 - Cooktop Parts
02 - Chassis Parts
03 - Manifold Parts

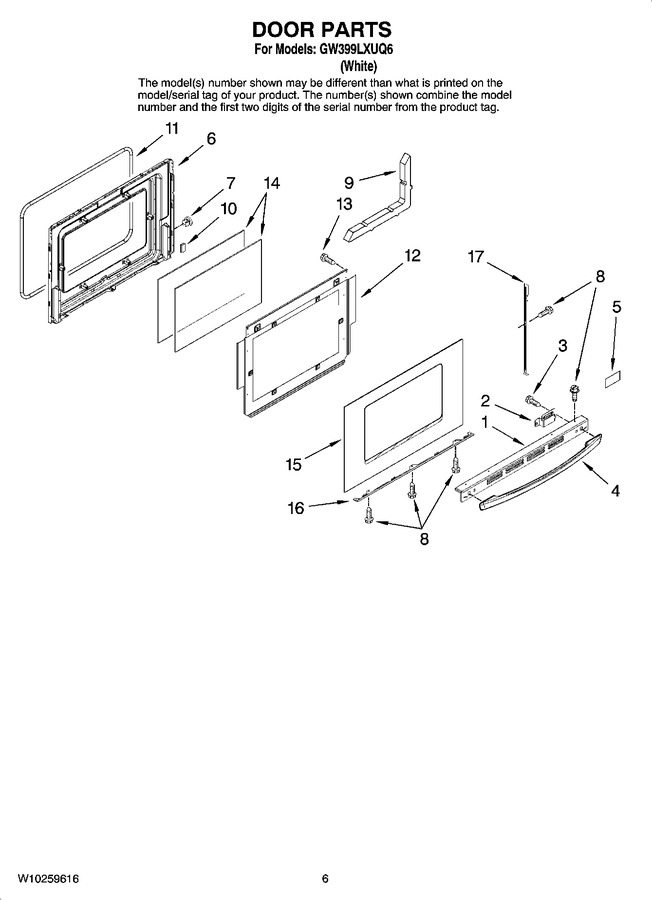

04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3608F141-71 | Trim, Door Top |
|
$ 98.12 | |||||
| 2 | 3801F831-45 | Bracket, Handle (right) |
|
$ 22.37 | |||||
| 2 | 3801F832-45 | Bracket, Handle (left) |
|
$ 22.30 | |||||
| 3 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 14.23 | |||||
| 4 | WPW10118430 | Handle, Door (Replaces: W10118430) |
|
$ 279.29 | |||||
| 5 | 8303810 | Name Plate |
|
- | |||||
| 6 | 2402W312-19 | Liner, Door |
|
$ 144.50 | |||||
| 7 | WP74001574 | Nut, Snap (4) (Replaces: 7103P141-60) |
|
Immediately | $ 11.74 | ||||
| 8 | WP98008544 | Screw, Trim (Replaces: 7101P636-60) |
|
$ 13.87 | |||||
| 9 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 10 | WP74005546 | Spacer (Replaces: 8010P130-60) |
|
$ 11.06 | |||||
| 11 | WPW10162384 | Seal, Door (Replaces: W10162384) |
|
Immediately | $ 86.23 | ||||
| 12 | 3601F373-60 | Baffle, Retainer |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 14.72 | ||||
| 14 | 7902P768-60 | Glass, Inner (2) (coated) |
|
- | |||||
| 14 | 74003645 | Glass, Inner (2) (clear) (Replaces: 7902P436-60) |
|
Immediately | $ 180.59 | ||||
| 15 | W10170228 | Glass, Includes Glass, Tape & Logo |
|
- | |||||
| 16 | WP3807F708-71 | Trim, Door Bottom (Replaces: 3807F708-71) |
|
$ 168.97 | |||||
| 17 | WP3608F116-71 | Trim, Door Side (right) (Replaces: 3608F116-71) |
|
$ 130.68 | |||||
| 17 | WP3608F117-71 | Trim, Door Side (left) (Replaces: 3608F117-71) |
|
$ 130.00 |
