01 - Cooktop Parts

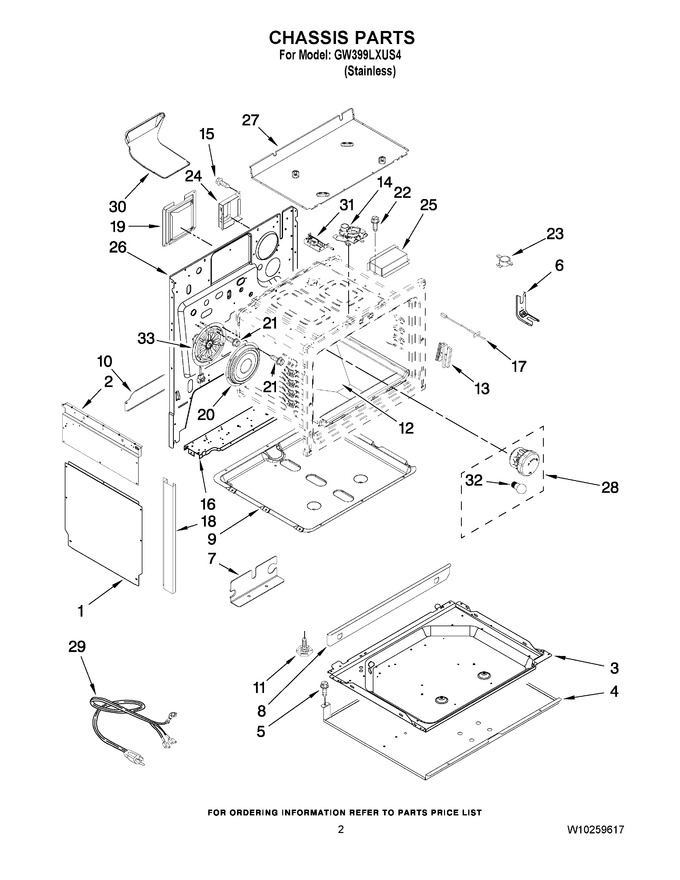

02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3604F416-51		Shield, Lower Side				$ 59.21
2	2618F201-51		Panel, Shield (left)				$ 32.51
2	2618F206-51		Panel, Shield (right)				$ 135.68
3	3804F245-51		Retainer, Bottom				$ 97.02
4	3604F326-45		Shield, Drawer		Appelez-nous	-
5	W11347848		Screw   (Replaces: 7101P376-60)				$ 13.55
6	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
7	3801F951-51		Bracket, Power Supply		Appelez-nous	-
8	3601F251-45		Baffle, Oven Front		Appelez-nous	-
9	3401F044-45		Pan, Burner		Appelez-nous	-
10	3826F066-51		Extention, Back				$ 7.82
11	WP74010805		Foot, Leveler (4)   (Replaces: 7101P660-60)				$ 7.19
12	WP2205F054-19		Bottom, Oven   (Replaces: 2205F054-19)				$ 737.21
13	74011142		Hinge (2)   (Replaces: 7106P141-60)			Immediately	$ 120.24
14	74010819		Latch Assembly   (Replaces: 8002P089-60)				$ 360.32
15	74003975		Screw, Latch Lever   (Replaces: 7101P375-60)				$ 13.36
16	3807F640-51		Support, Valve Reg				$ 31.03
17	12001655		Sensor, Short   (Replaces: 7430P041-60)			Immediately	$ 45.57
18	3608F138-70		Trim, Side				$ 66.28
19	3804F300-51		Retainer, Conv Insulation				$ 66.09
20	WPW10346154		Cover, Conv Fan   (Replaces: 3605F323-19)			Immediately	$ 73.97
21	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
22	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
23	7450P030-60		Switch, Limit			Immediately	$ 96.95
24	4005F810-51		Cover, Access				$ 248.98
25	4005F750-51		Cover, Door Lock		Appelez-nous	-
26	3804F313-51		Back, Main Gas		Appelez-nous	-
27	4011F528-51		Bottom,burner Box		Appelez-nous	-
28	WP7407P182-60		Light Assembly   (Replaces: 7407P182-60)			Immediately	$ 73.44
29	7402P086-60		Cord, Power		Appelez-nous	-
30	8026P095-60		Box, Assy Vent				$ 60.62
31	WP7450P108-60		Switch, Light Assy   (Replaces: 7450P109-60)			Immediately	$ 153.60
32	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 18.67
33	W10206590		Fan, Convection				$ 225.55
NI	7002P471-60		Insulation, Wrap		Appelez-nous	-
NI	7002P445-60		Insulation, Back		Appelez-nous	-
NI	7002P443-60		Insulation, Lower Sides				$ 41.31
NI	7002P078-60		Insulation, Drawer		Appelez-nous	-
NI	WP7002P451-60		Insulation, Flue   (Replaces: 7002P451-60)				$ 75.87
