Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7801P173-60 Rack, Oven (2) Special Order $ 55.72

2 WP74005546 Spacer, Rubber   (Replaces: 8010P130-60) Special Order $ 10.53

3 WP3405F037-80 Drawer, Service   (Replaces: 3405F033-80) Special Order $ 338.87

4 W11233072 Screw, Panel   (Replaces: 7101P634-60) In-Stock Immediately $ 14.02

5 W10180296 Handle Special Order $ 99.76

6 W10253205 Panel,drawer Frnt Special Order $ 103.90

7 2404F030-51 Lining, Drawer Appelez-nous -
8 3801F887-51 Bracket, Drawer Special Order $ 8.32

9 W10272883 Roller, Drawer (2) Special Order $ 7.90

10 7118P032-60 Shaft, Roller (2) Appelez-nous -
11 WP488130 Nut, Lock   (Replaces: 7103P082-60) Special Order $ 6.97

12 W10273862 Rack, Half Special Order $ 56.22

13 W10275560 Insert, Rack Special Order $ 69.52


    View Diagram in Separate Window     Print Icon   Print Part List

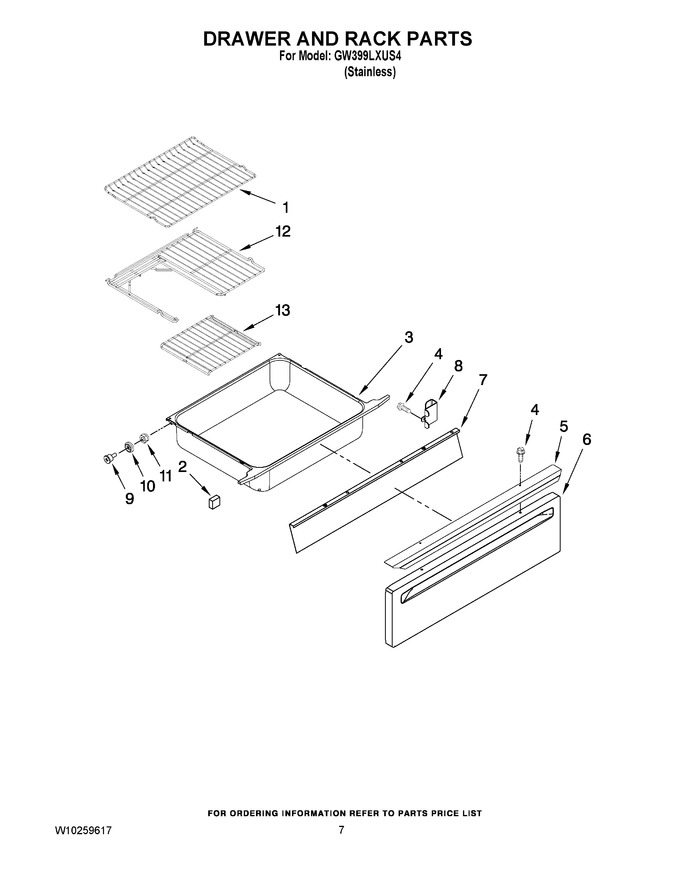

Diagram for GW399LXUS4
