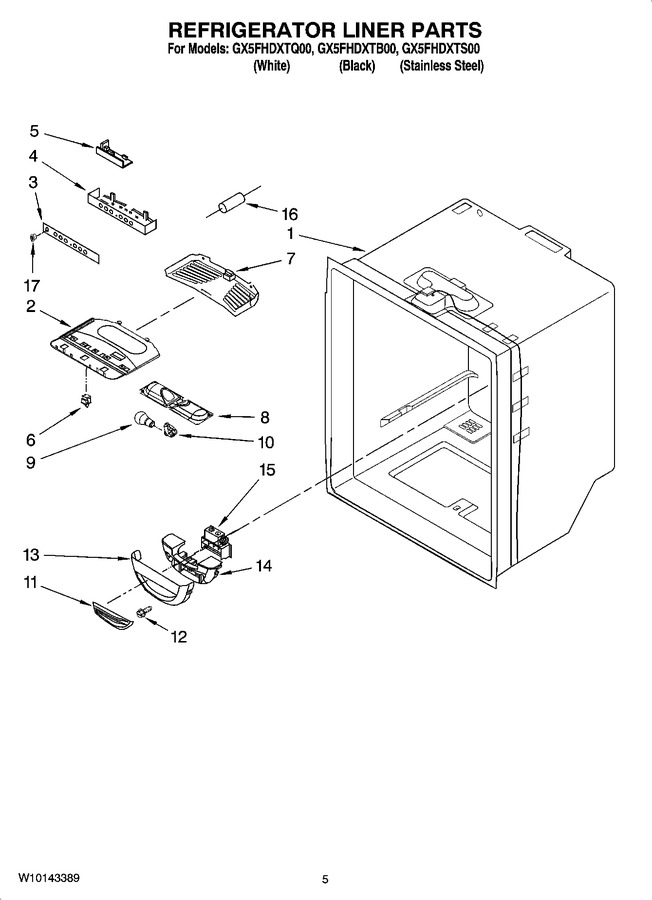

03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	8208277		Bracket, Control And Lights		Appelez-nous	-
3	W10117528		Overlay		Appelez-nous	-
4	67004005		Housing Electronic Control		Appelez-nous	-
5	WPW10503278		Electronic Control   (Replaces: 67006740)			Immediately	$ 55.44
6	W11384469		Switch, Light   (Replaces: 4344571)			Immediately	$ 39.09
7	W11284721		Cover, Light   (Replaces: 8208188)				$ 106.02
8	12806601		Housing, Light   (Replaces: 8208189)				$ 110.20
9	W11679940		Bulb, Light   (Replaces: A0282812)			Immediately	$ 11.30
10	W11447232		Socket, Light   (Replaces: 8170839)			Immediately	$ 13.87
11	67003900		Insert, Damper Cover   (Replaces: 8208191)			Immediately	$ 8.55
12	W11772394		Screw   (Replaces: 67006602)			Immediately	$ 13.22
13	WP12806701		Cover, Damper   (Replaces: 8208193)				$ 118.65
14	8208194		Insulation		Appelez-nous	-
15	WP67003903		Control, Damper   (Replaces: 8208195)			Immediately	$ 168.73
16	12002355		Thermister   (Replaces: 8208196)			Immediately	$ 47.36
17	WP12868601		Harness, Control (refrigerator) (includes 16)   (Replaces: 67004032)				$ 130.80
17	W11478401		Switch (energy Saver)   (Replaces: 67003940)			Immediately	$ 137.72
