Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8171181 Freezer Door (includes Insulation) (white) Appelez-nous -
1 8171179 Freezer Door (includes Insulation) (black) Appelez-nous -
1 8171178 Freezer Door (includes Insulation) (stainless Steel) Appelez-nous -
2 WP2254600W Handle (white)   (Replaces: 2254600W) Special Order $ 246.90

2 WP2254600B Handle (black)   (Replaces: 2254600B) Special Order $ 219.21

2 2254600S Handle (stainless Steel) Special Order $ 106.71

3 12991101 Screw   (Replaces: 67006408) Special Order $ 13.47

4 8171185 Gasket, Door (white) Appelez-nous -
4 W10436252 Gasket, Door (black)   (Replaces: 8171186) In-Stock Immediately $ 362.28

5 WP3387230 Screw   (Replaces: 8170956) In-Stock Immediately $ 8.54

7 8208212 Plug, Button (2) (white) Appelez-nous -
7 67004838 Plug, Button (2) (black)   (Replaces: 8208213) Special Order $ 11.21

9 8171220 Stud, Handle Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

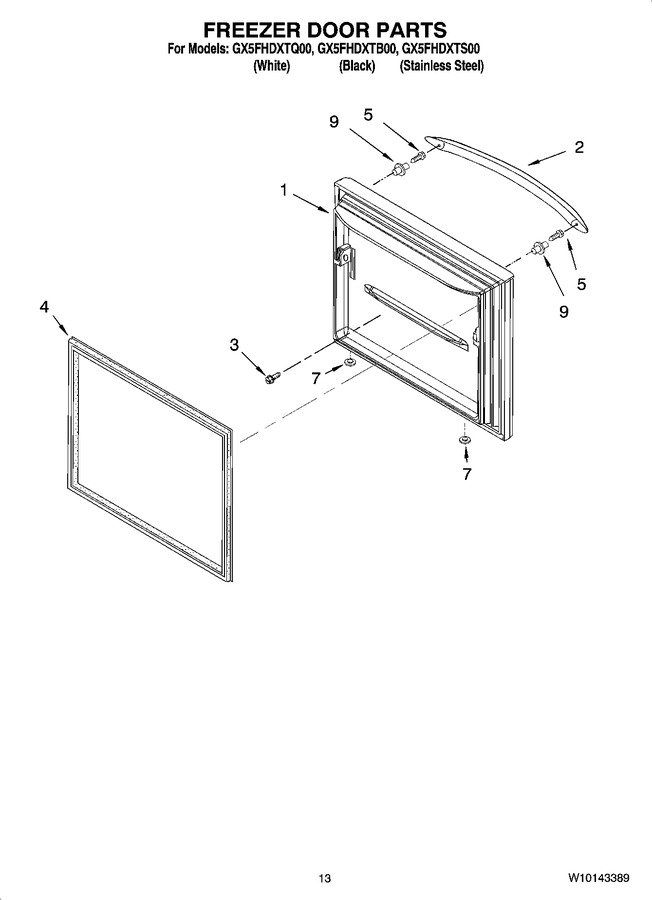

Diagram for GX5FHDXTQ00
