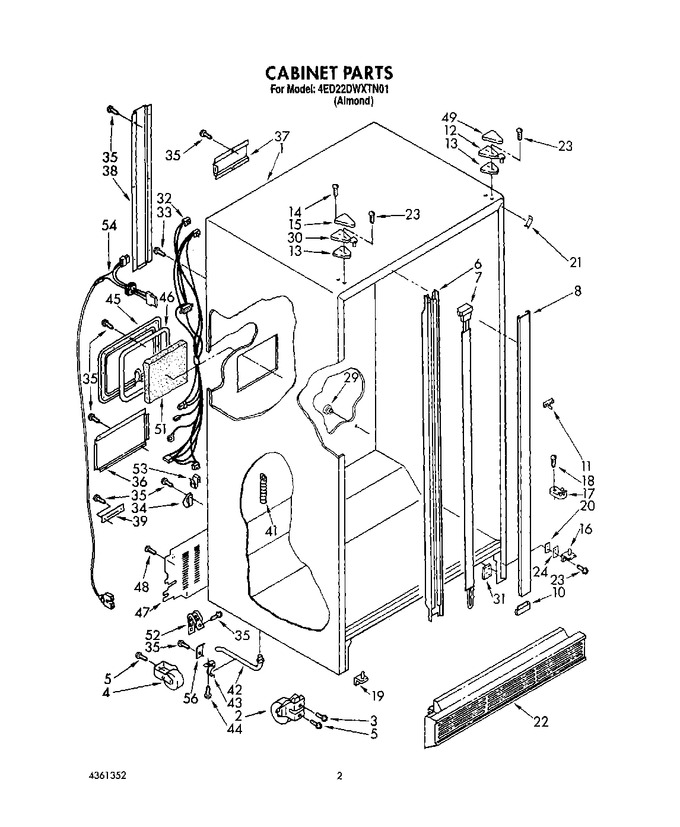

| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 2152011 | Front Roller (2) |
|
- | |||||
| 3 | 489393 | Screw |
|
- | |||||
| 4 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 40.17 | |||||
| 5 | 488454 | Screw, 1/4-28 X 1/2 (6) |
|
- | |||||
| 6 | 2155015 | Mullion Rail |
|
- | |||||
| 7 | 1129453 | Heater Mullion |
|
- | |||||
| 8 | 1123969 | Front Mullion Rail (almond) |
|
- | |||||
| 10 | 1118362 | Filler Bottom Mullion (almond) |
|
- | |||||
| 11 | 1110607 | Clip, Ground |
|
- | |||||
| 12 | 1123514 | Hinge, Top |
|
- | |||||
| 13 | 1123515 | Shim, Hinge Top |
|
$ 6.58 | |||||
| 14 | 489284 | Screw, Bind |
|
- | |||||
| 15 | 2150343 | Hinge Cover (almond) |
|
- | |||||
| 16 | 2151619 | Hinge Bottom (r.h.) |
|
- | |||||
| 17 | WPW10329686 | Door Closer Lower Cam (2) (Replaces: 1115901) |
|
Immediately | $ 5.43 | ||||
| 18 | WP489399 | Screw (2) (Replaces: 489375) |
|
$ 6.95 | |||||
| 19 | 2151620 | Hinge Bottom (l.h.) |
|
- | |||||
| 20 | 1129868 | Spacer, Hinge |
|
- | |||||
| 21 | 1110709 | Filler, Wrapper (almond) |
|
- | |||||
| 22 | 1129061 | Grille |
|
- | |||||
| 23 | 489327 | Screw |
|
- | |||||
| 24 | 836196 | Shim |
|
- | |||||
| 29 | 1129178 | Grommet |
|
- | |||||
| 30 | 1123510 | Hinge, Top (l.h.) |
|
- | |||||
| 31 | 2147310 | Tap Plate (2) |
|
- | |||||
| 32 | 2155156 | Cabinet Harness |
|
- | |||||
| 33 | WP250830 | Screw, Ground (Replaces: 489048) |
|
$ 7.95 | |||||
| 34 | 1129503 | Clamp |
|
- | |||||
| 35 | WP489478 | Screw (Replaces: 489242) |
|
$ 7.75 | |||||
| 36 | 1129193 | Cover, Wiring |
|
- | |||||
| 37 | 1108440 | Wiring Shield, Short |
|
- | |||||
| 38 | 1108441 | Wiring Shield, Long |
|
- | |||||
| 39 | 1105607 | Tube Clamp (2) |
|
- | |||||
| 41 | 942768 | Fitting, Drain |
|
- | |||||
| 42 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 31.33 | ||||
| 43 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 10.74 | |||||
| 44 | WP489464 | Screw (Replaces: 489337) |
|
Immediately | $ 7.83 | ||||
| 45 | 1108443 | Cover, Plug |
|
- | |||||
| 46 | 1115321 | Sealing Gasket |
|
- | |||||
| 47 | 1129479 | Cover, Unit |
|
- | |||||
| 48 | WPW10141645 | Screw, 8 X 1/2 (6) (Replaces: 489084) |
|
$ 7.67 | |||||
| 49 | 1119789 | Hinge Cover (almond) |
|
- | |||||
| 51 | 1118236 | Insulation |
|
- | |||||
| 52 | 549193 | Clamp-service Cord |
|
$ 13.39 | |||||
| 53 | 548745 | Clip, Wire |
|
- | |||||
| 54 | WP2187501 | Wiring Assembly (icemaker) (Replaces: 1129189) |
|
$ 113.76 | |||||
| 56 | 836472 | Clamp, Water Line (2) |
|
- |
