Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Serviceable Part) Appelez-nous -
2 1115380 Slide, Ice Door Appelez-nous -
3 2158953 Door, Ice Compartment Appelez-nous -
4 1108436 Evaporator, Support Appelez-nous -
5 WP489478 Screw, 8 X 1/2   (Replaces: 489242) Special Order $ 7.75

6 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 10.42

7 1115317 Support, Stud (4) Appelez-nous -
8 2152098 Basket (2) Appelez-nous -
9 1127151 Trim, Basket Appelez-nous -
10 2152087 Basket, Tall Appelez-nous -
11 2152089 Basket, Slope Appelez-nous -
12 1115253 Rack, Pizza Appelez-nous -
14 1114607 Wiring Cover Appelez-nous -
15 WP488729 Screw   (Replaces: 489176) In-Stock Immediately $ 7.79

17 1126354 Shelf Track (right Side (4)) Appelez-nous -
17 1126355 Shelf Track (left Side (4)) Appelez-nous -
18 W11693756 Screw   (Replaces: 487042) In-Stock Immediately $ 14.06

19 W11457217 Switch, Rocker Arm   (Replaces: 1115373) Special Order $ 38.18


    View Diagram in Separate Window     Print Icon   Print Part List

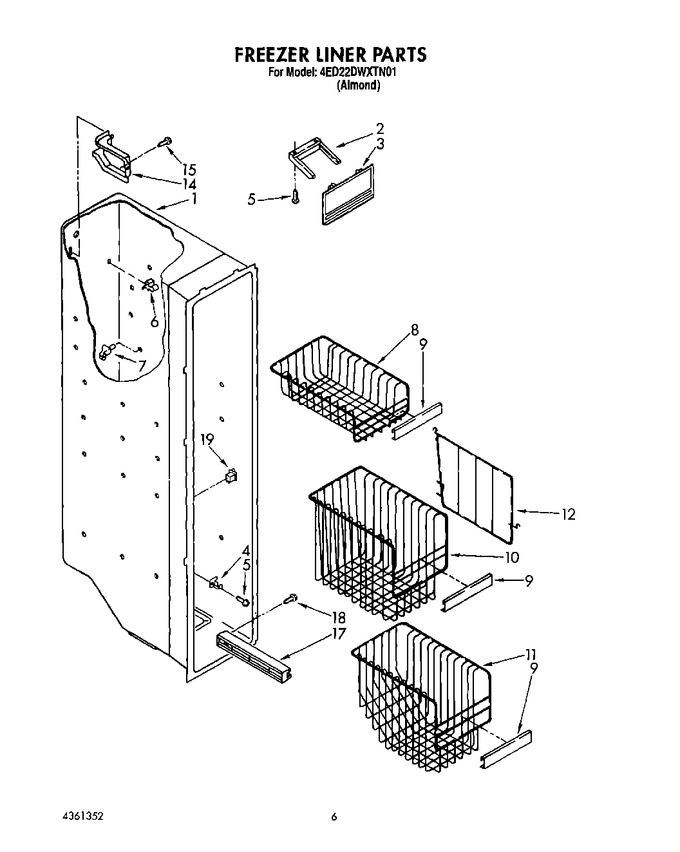

Diagram for 4ED22DWXTN01
