SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Oven Parts

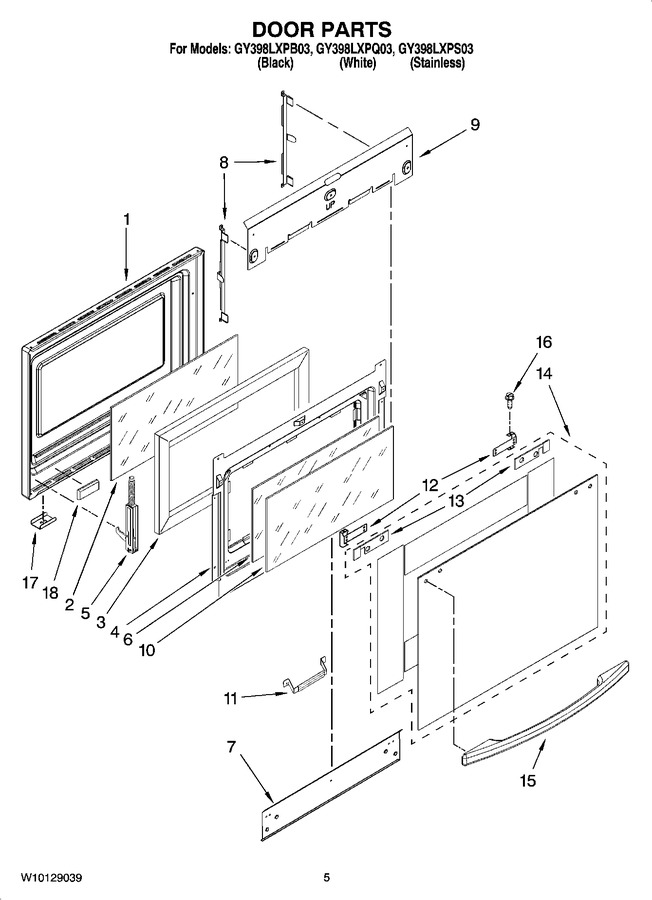

04 - Door Parts


05 - Drawer Parts


06 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Panel, Door   (Replaces: 9759413)				$ 370.46
2	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 141.95
3	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
4	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
5	WP9760574		Hinge, Oven Door Left (stainless)   (Replaces: 9760574)			Immediately	$ 67.07
5	9760573		Hinge, Oven Door Right (stainless)				$ 48.80
5	WP9760571		Hinge, Oven Door Right (black/white)   (Replaces: 9760571)			Immediately	$ 114.51
5	WP9760572		Hinge, Oven Door Left (black/white)   (Replaces: 9760572)				$ 111.96
6	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
7	4457114		Shield, Heat-bottom				$ 217.79
8	WP9759229		Bracket, Glass Side   (Replaces: 9759229)				$ 187.50
9	4457104		Shield, Heat Top   (Replaces: 4457103)				$ 39.22
10	WP9759225		Glass, Inner Door   (Replaces: 9759225)			Immediately	$ 194.20
11	9759230		Bracket, Central				$ 36.30
12	4450813		Bracket, Handle				$ 24.20
13	9759638		Pad, Handle (right)		Appelez-nous	-
13	9759637		Pad, Handle (left)		Appelez-nous	-
14	WP9759074		Assembly, Door Kit (stainless)   (Replaces: 9759349)				$ 439.14
14	9759639		Assembly, Door Kit (white)				$ 173.45
14	9759641		Assembly, Door Kit (black)				$ 127.72
15	4448854		Handle, Door (black)				$ 74.07
15	4448855		Handle, Door (white)		Appelez-nous	-
16	W10276642		Screw   (Replaces: 4451040)				$ 6.41
17	4450863		Retainer, Glass Clip		Appelez-nous	-
18	9759635		Spacer, Door Glass				$ 36.09

    View Diagram in Separate Window       Print Part List
