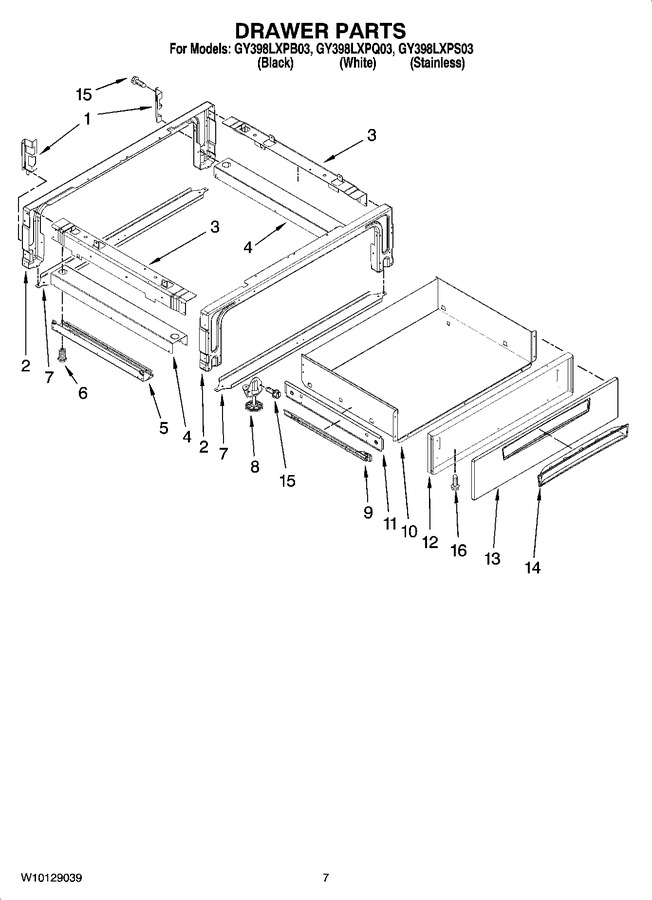

04 - Door Parts


05 - Drawer Parts


06 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9757686		Support, Drawer Rail (left)				$ 38.48
1	9757687		Support, Drawer Rail (right)				$ 38.36
2	9763501BL		Support, Front & Rear				$ 43.72
3	4453720		Brace, Drawer (right)				$ 34.27
3	4453721		Brace, Drawer (left)				$ 34.27
4	9759965		Bracket, Base		Appelez-nous	-
5	9759954		Side, Base (left)				$ 88.47
5	9759953		Side, Base (right)				$ 108.70
6	WPW10058460		Foot   (Replaces: W10058460)			Immediately	$ 8.24
7	9759943		Brace, Front		Appelez-nous	-
8	WP3196037		Foot Assembly   (Replaces: 3196037)				$ 87.12
9	9756836		Rail, Storage (right)		Appelez-nous	-
9	9756838		Rail, Storage (left)		Appelez-nous	-
10	9757806		Drawer				$ 182.02
11	9756841		Guide, Roller Includes Roller (right)		Appelez-nous	-
11	9756842		Guide, Roller Includes Roller (left)				$ 70.28
12	9760592		Panel, Drawer		Appelez-nous	-
13	4453921SS		Front, Drawer (stainless)		Appelez-nous	-
13	4453921WH		Front, Drawer (white)		Appelez-nous	-
13	4453921BL		Front, Drawer (black)		Appelez-nous	-
14	9756674BL		Handle, Drawer (black)		Appelez-nous	-
14	9756674WH		Handle, Drawer (white)		Appelez-nous	-
15	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
16	WP3400805		Screw   (Replaces: 3400805)				$ 7.55
