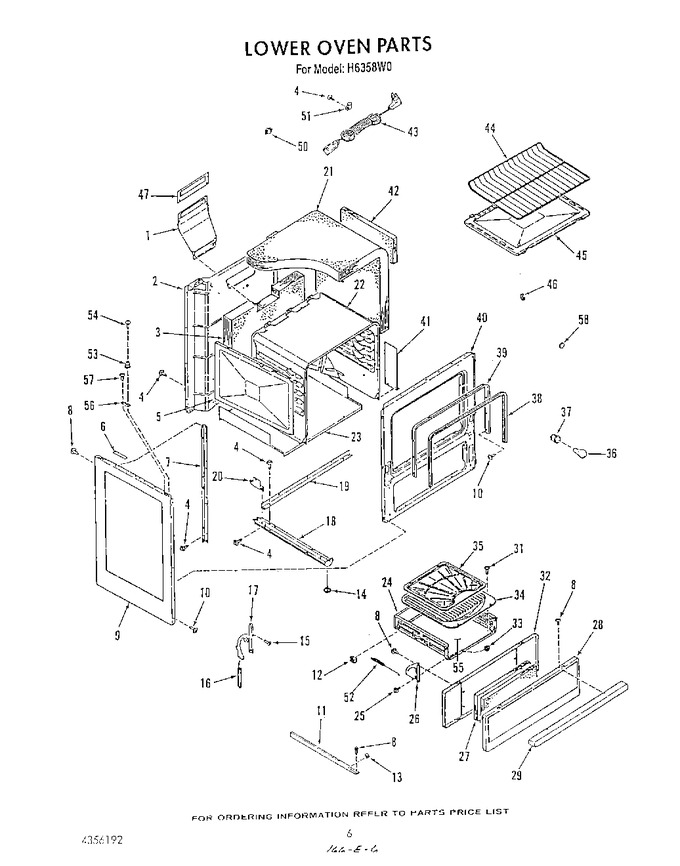

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4335162		Deflector		Appelez-nous	-
2	4335261		Back, Main		Appelez-nous	-
3	4354817		Insulation-back		Appelez-nous	-
4	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
5	4335889		Retainer, Insul., (lt/rt)		Appelez-nous	-
6	4337485		Spacer (lt/rt)		Appelez-nous	-
7	4335147		Support, Side (lt/rt)		Appelez-nous	-
8	WP681414		Screw No.10-16x7/16 Side-body (lt/rt)   (Replaces: 4335248)			Immediately	$ 7.62
8	4337591		White		Appelez-nous	-
8	4337593		Almond		Appelez-nous	-
10	WP308685		Screw, No.10 X1/2   (Replaces: 4335117)			Immediately	$ 7.08
11	4337201		Guide-bro. Drawer (left Side)		Appelez-nous	-
11	4337202		Guide-bro. Drawer (right Side)		Appelez-nous	-
12	4337369		Slide Block-rear		Appelez-nous	-
13	4337370		Slide Block-front		Appelez-nous	-
14	4334834		Leveler Leg (4)		Appelez-nous	-
15	4336631		Screw No.10-32x5/8		Appelez-nous	-
16	4337297		Spring, Oven Door		Appelez-nous	-
17	4336783		Hinge-oven Door (right)				$ 44.64
17	4336784		Hinge-oven Door (left)				$ 80.99
18	4335140		Base W/levelers, (lt/rt)		Appelez-nous	-
19	4335143		Support, Base		Appelez-nous	-
20	4335142		Bracket, Support (right)		Appelez-nous	-
20	4335141		Bracket, Support (left)		Appelez-nous	-
21	4354750		Insulation-top & Sides		Appelez-nous	-
22	4337600		Oven Body		Appelez-nous	-
23	4335153		Bottom, Main		Appelez-nous	-
24	4342680		Drawer, Broiler		Appelez-nous	-
25	4335999		Bolt, Shoulder		Appelez-nous	-
26	4338607		Hinge, Bro. Door (right)		Appelez-nous	-
26	4338606		Hinge, Bro. Door (left)		Appelez-nous	-
27	4327653		Insulation-broiler Door (2)		Appelez-nous	-
28	4342632		Panel, Bro. Door		Appelez-nous	-
29	4336754		Handle		Appelez-nous	-
31	4332521		Screw No.10-32x1/2		Appelez-nous	-
32	4342681		Lining, Broiler Door		Appelez-nous	-
33	W10080180		Nut, Keps No.10-24   (Replaces: 4323461)				$ 12.74
34	4336603		Pan, Broiler		Appelez-nous	-
35	4336598		Grid, Broiler Pan		Appelez-nous	-
36	8009		Lamp, Oven   (Replaces: 4338591)			Immediately	$ 16.80
37	W10856866		Holder, Lamp   (Replaces: 4352753)				$ 6.80
38	4354751		Seal, Oven Door		Appelez-nous	-
39	4335426		Retainer, Oven-door-seal		Appelez-nous	-
40	4338085		Frame, Front		Appelez-nous	-
41	4335889		Retainer, Insul., (lt/rt)		Appelez-nous	-
42	4327653		Insulation (rt/lt)		Appelez-nous	-
43	4351709		Cord, Service		Appelez-nous	-
44	4354754		Rack, Oven (2)		Appelez-nous	-
45	4335164		Bottom, Oven		Appelez-nous	-
46	4333390		Clip, Thermostat		Appelez-nous	-
47	4336020		Insulation, Flue Deflector		Appelez-nous	-
50	4324642		Disconnect		Appelez-nous	-
51	4335295		Spring, Broiler-drawer		Appelez-nous	-
53	4337082		Strike		Appelez-nous	-
54	4335220		Screw		Appelez-nous	-
55	4336575		Bottom, Broiler		Appelez-nous	-
56	4337184		Support, Side (left)		Appelez-nous	-
56	4337183		Support, Side (right)		Appelez-nous	-
57	4338182		Screw		Appelez-nous	-
58	4338588		Plug, Button		Appelez-nous	-
