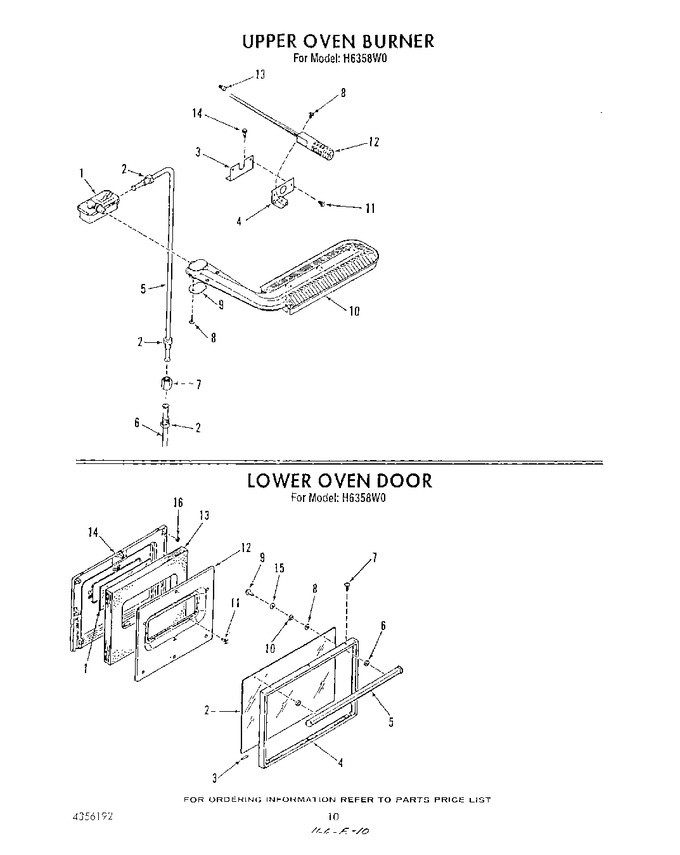

07 - Upper Oven Burner/lower Oven Door


08 - Wire Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4334960		Valve, Control		Appelez-nous	-
2	4324278		Nut, Inverted 3/8		Appelez-nous	-
3	4334578		Bracket, Igniter		Appelez-nous	-
4	4331163		Bracket, Igniter		Appelez-nous	-
5	4325566		Tubing 3/8`` (union To Control Valve)		Appelez-nous	-
6	4332282		Tubing 3/8`` (union To Shut-off Valve)		Appelez-nous	-
7	4324275		Union 3/8``		Appelez-nous	-
8	4323953		Screw No.10-32x1/4		Appelez-nous	-
9	4333875		Air Shutter		Appelez-nous	-
10	4336670		Oven Burner		Appelez-nous	-
11	4323394		Screw, No.10 X 3/8		Appelez-nous	-
12	4342528		Igniter   (Replaces: 4338008)			Immediately	$ 98.63
13	WP4323866		Connector-wire (2)   (Replaces: 4323866)				$ 10.48
14	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
A1	4334792		Glass, Inner		Appelez-nous	-
A10	4336869		Spacer, Glass		Appelez-nous	-
A11	4323884		Screw, No.10-32x17/32``		Appelez-nous	-
A12	4335755		Retainer		Appelez-nous	-
A13	4354748		Insulation		Appelez-nous	-
A14	4334773		Lining		Appelez-nous	-
A15	4323694		Washer		Appelez-nous	-
A16	4337618		Washer, Felt		Appelez-nous	-
A2	4336721		Glass, Outer		Appelez-nous	-
A3	4324217		Cushion		Appelez-nous	-
A4	4336720		Frame		Appelez-nous	-
A5	4336828		Handle		Appelez-nous	-
A6	4323997		Spacer, Handle		Appelez-nous	-
A7	4336631		Screw		Appelez-nous	-
A8	4336868		Washer		Appelez-nous	-
A9	WP999367		Screw, No.10-32 X 3/4   (Replaces: 4328242)				$ 7.70
