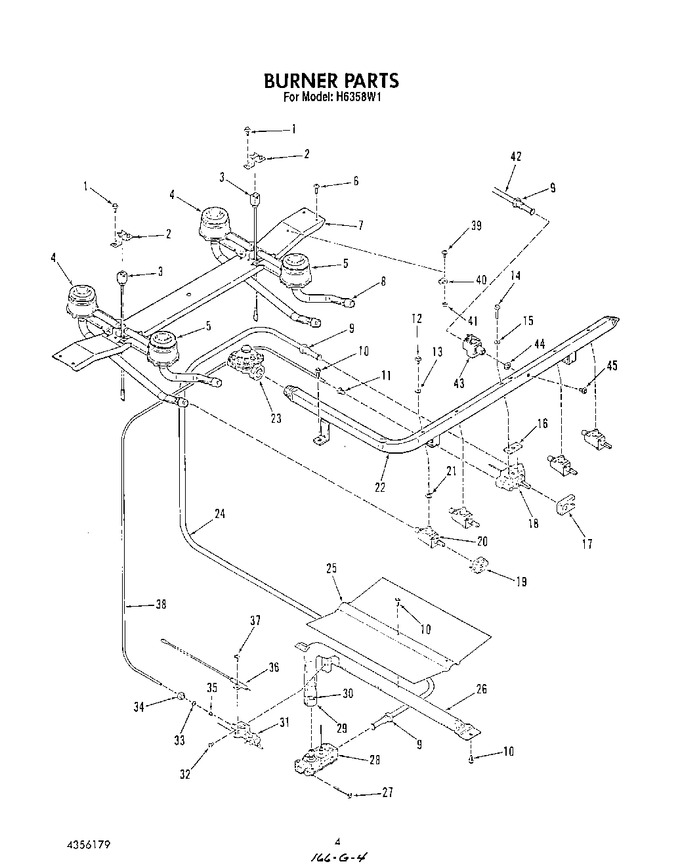

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw No.8-32x3/8   (Replaces: 4323625)				$ 10.26
2	4331307		Bracket, Ignitor		Appelez-nous	-
3	4331688		Electrode (right)		Appelez-nous	-
3	4354924		Electrode (left)		Appelez-nous	-
4	4342874		Burner-rear, Lt. Or Rt. (incl. No.8)		Appelez-nous	-
5	4342875		Burner, Front-lt. Or Rt. (incl. No.8)		Appelez-nous	-
6	4335339		Screw No.6-32x3/8		Appelez-nous	-
7	4338389		Support-top Burner		Appelez-nous	-
8	4333875		Air Shutter		Appelez-nous	-
9	4324278		Nut, Inverted 3/8		Appelez-nous	-
10	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
11	4323489		Nut, Loxit		Appelez-nous	-
12	4331097		Screw		Appelez-nous	-
13	4331164		Seal		Appelez-nous	-
14	4332668		Screw		Appelez-nous	-
15	4332709		Seal		Appelez-nous	-
16	4332708		Seal		Appelez-nous	-
17	4332653		Switch, Thermostat		Appelez-nous	-
18	4336370		Thermostat, (inc`s No.16)		Appelez-nous	-
19	4330739		Switch, Gas Valve				$ 57.26
20	4336715		Gas Valve, (inc`s No.21)		Appelez-nous	-
21	4331665		Seal		Appelez-nous	-
22	4338414		Pipe, Manifold		Appelez-nous	-
23	4334271		Regulator-pressure		Appelez-nous	-
24	4342678		Tubing 3/8``, (inc`s No.9)		Appelez-nous	-
25	4336021		Baffle, Oven Burn		Appelez-nous	-
26	4336130		Burner Assembly, (inc`s 25, 29, 30)		Appelez-nous	-
27	4333826		Screw, No.10-32 X 2		Appelez-nous	-
28	4333475		Valve, Control		Appelez-nous	-
29	4331501		Shutter, Air		Appelez-nous	-
30	4331502		Screw, Adjustment		Appelez-nous	-
31	4332674		Pilot (inc`s 35)		Appelez-nous	-
32	4326551		Screw, No.10-24 X 1/4		Appelez-nous	-
33	4350216		Sleeve, Compress.		Appelez-nous	-
34	4323359		Nut, Compress.3/16		Appelez-nous	-
35	4332673		Orifice Cup		Appelez-nous	-
36	4335201		Electrode		Appelez-nous	-
37	4324445		Screw, No.6 X 3/8		Appelez-nous	-
38	4354564		Tubing 3/16		Appelez-nous	-
39	4342637		Screw, No.8-32 X 3/8		Appelez-nous	-
40	4337581		Clip		Appelez-nous	-
41	WP488130		Nut   (Replaces: 4325189)				$ 6.59
42	4332282		Tubing 3/8``, (inc`s 9)		Appelez-nous	-
43	4335080		Valve, Shut Off		Appelez-nous	-
44	4331665		Seal		Appelez-nous	-
45	4331097		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
