02 - Cook Top
03 - Control Panel
04 - Burner
05 - Lower Oven
06 - Lower Oven Door

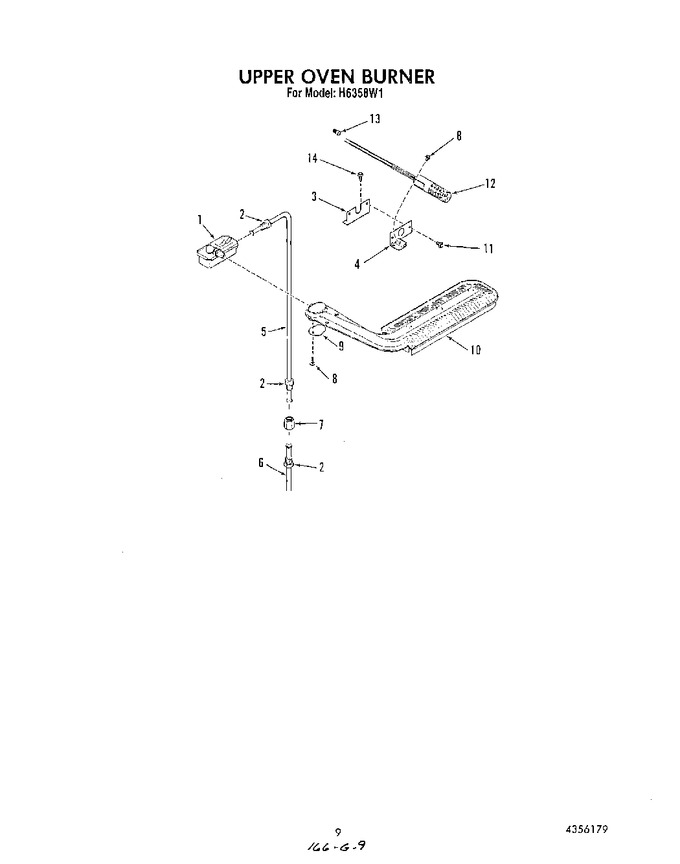

07 - Upper Oven Burner
08 - Upper Oven
09 - Wire Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4334960 | Valve, Control |
|
- | |||||
| 2 | 4324278 | Nut, Inverted 3/8 |
|
- | |||||
| 3 | 4334578 | Bracket, Igniter |
|
- | |||||
| 4 | 4331163 | Bracket, Igniter |
|
- | |||||
| 5 | 4325566 | Tubing 3/8`` (union To Control Valve) |
|
- | |||||
| 6 | 4332282 | Tubing 3/8`` (union To Shut-off Valve) |
|
- | |||||
| 7 | 4324275 | Union 3/8`` |
|
- | |||||
| 8 | 4323953 | Screw No.10-32x1/4 |
|
- | |||||
| 9 | 4333875 | Air Shutter |
|
- | |||||
| 10 | 4336670 | Oven Burner |
|
- | |||||
| 11 | 4323394 | Screw, No.10 X 3/8 |
|
- | |||||
| 12 | 4342528 | Igniter (Replaces: 4338008) |
|
Immediately | $ 98.63 | ||||
| 13 | WP4323866 | Connector-wire (2) (Replaces: 4323866) |
|
$ 10.48 | |||||
| 14 | W10850756 | Screw, No.10-32 X 7/16 (Replaces: 4331106) |
|
$ 7.38 |
