02 - Cabinet Liner And Door

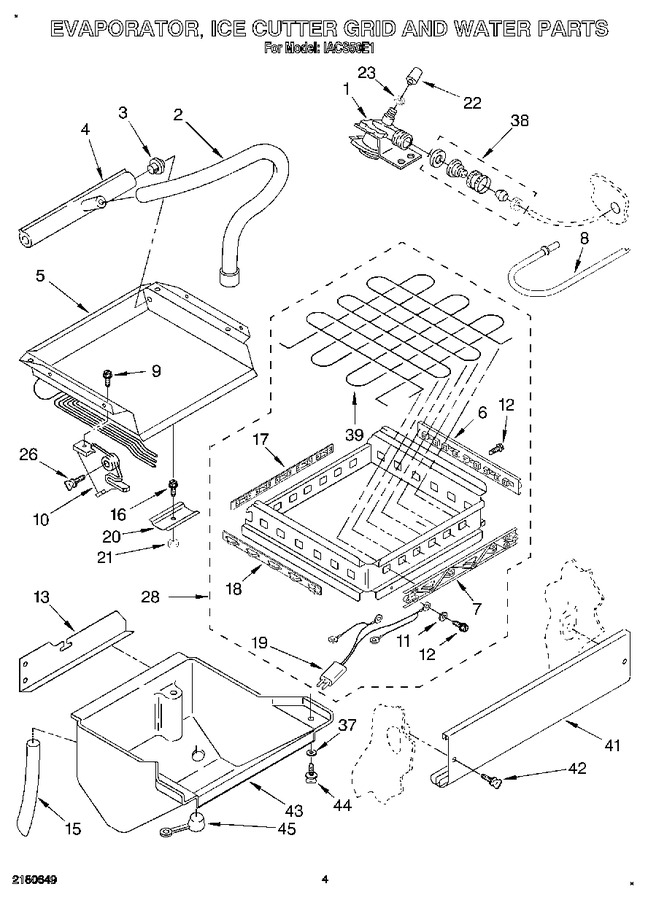

03 - Evaporator, Ice Cutter Grid And Water


04 - Pump


05 - Escutcheon And Control Components


06 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2174850		Valve, Water (complete)		Appelez-nous	-
2	585856		Tube, Plastic		Appelez-nous	-
3	758597		Plug (2)		Appelez-nous	-
4	7016889		Dispenser, Water   (Replaces: 1129798)		Appelez-nous	-
5	758028		Evaporator		Appelez-nous	-
6	N/A		Spacer, Adjustable		Appelez-nous	-
7	N/A		Spacer, Adjustable		Appelez-nous	-
8	759213		Tube, Water Fill		Appelez-nous	-
9	WP681414		Screw, 10 - 12 X 1/2   (Replaces: 489049)			Immediately	$ 8.47
10	756564		Bracket, Grid Mounting (2)		Appelez-nous	-
11	N/A		Washer, Plain		Appelez-nous	-
12	N/A		Screw		Appelez-nous	-
13	585853		Shelf, Water Pan		Appelez-nous	-
15	759109		Hose, Overflow		Appelez-nous	-
16	596037		Screw, 10-32 X 1/2		Appelez-nous	-
17	N/A		Spacer, Fixed		Appelez-nous	-
18	N/A		Spacer, Fixed		Appelez-nous	-
19	N/A		Harness, Grid		Appelez-nous	-
20	587662		Clamp		Appelez-nous	-
21	681676		Nut, Wing		Appelez-nous	-
22	4387491		Insert,   (Replaces: 841707)				$ 8.23
23	WP627018		Nut & Sleeve Assembly   (Replaces: 627018)				$ 11.51
26	681611		Thumbscrew		Appelez-nous	-
28	2174752		Grid Assembly (complete)		Appelez-nous	-
37	681245		Washer,		Appelez-nous	-
38	2165477		Adapter		Appelez-nous	-
39	N/A		Wire, Grid Cutter		Appelez-nous	-
41	593171		Panel, Grid		Appelez-nous	-
42	681534		Thumbscrew, 10-32 X 5/8				$ 11.33
43	756659		Pan		Appelez-nous	-
44	681419		Thumbscrew, 10 X 1/2		Appelez-nous	-
45	759043		Stopper, Pan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
