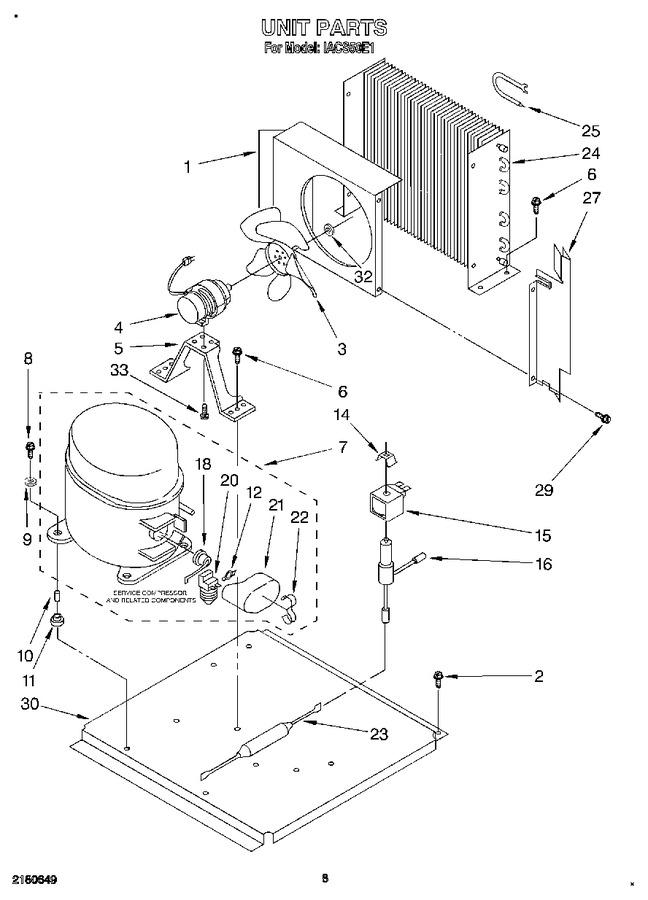

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	757955		Shroud		Appelez-nous	-
2	680811		Screw,		Appelez-nous	-
3	572728		Blade, Fan		Appelez-nous	-
4	593821		Motor, Fan		Appelez-nous	-
5	560817		Bracket		Appelez-nous	-
6	681305		Screw, 1/4-20 X 1/2 (6)		Appelez-nous	-
7	598180		Compressor		Appelez-nous	-
8	680233		Screw (4)		Appelez-nous	-
9	595230		Washer (4)		Appelez-nous	-
10	585564		Sleeve (4)		Appelez-nous	-
11	596355		Grommet (4)		Appelez-nous	-
12	549086		Spring, Overload		Appelez-nous	-
14	564234		Clamp, Coil Retainer		Appelez-nous	-
15	593639		Coil, Solenoid		Appelez-nous	-
16	598086		Valve, Body		Appelez-nous	-
18	598196		Overload		Appelez-nous	-
20	598195		Relay, Start		Appelez-nous	-
21	560849		Cover, Terminal		Appelez-nous	-
22	549342		Retainer, Cover		Appelez-nous	-
23	W10843121		Drier   (Replaces: 755649)			Immediately	$ 57.13
24	756299		Condenser		Appelez-nous	-
25	756298		Accumulator		Appelez-nous	-
27	758811		Deflector, Front		Appelez-nous	-
29	WP90767		Screw, 8 X 3/8   (Replaces: 681167)			Immediately	$ 8.25
30	758810		Base, Unit		Appelez-nous	-
32	681650		Conical Washer 1/4-20 Hex		Appelez-nous	-
33	489199		Screw		Appelez-nous	-
