SELECT A DIAGRAM

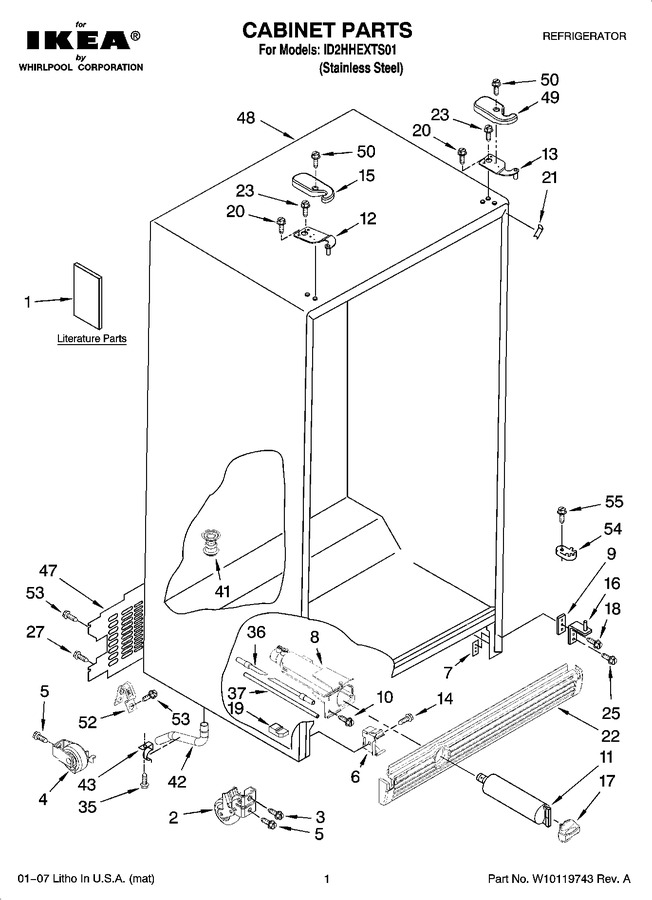

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2311194		Use & Care Guide		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	2311720		Instruction Sheet, Door Removal		Appelez-nous	-
1	2311195		Energy Label		Appelez-nous	-
1	2311814		Service & Wiring Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 14.42
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 42.18
5	WP489427		Screw   (Replaces: 489427)				$ 7.84
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 8.11
7	WP2304249		Plate, Screw   (Replaces: 2304249)				$ 14.94
8	2255521		Housing, Water Filter				$ 119.92
9	2209697		Shim (2)				$ 41.25
10	WP489500		Screw (2)   (Replaces: 489500)				$ 8.17
11	2255518		Water Filter		Appelez-nous	-
12	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 100.30
13	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 103.13
14	WP489128		Screw   (Replaces: 488500)				$ 11.40
15	WP2203407B		Hinge Cover (black)   (Replaces: 2203407B)				$ 20.50
16	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 97.45
17	WP2186494B		Cap, Water Filter (black)   (Replaces: 2186494B)			Immediately	$ 55.86
18	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 29.09
19	2186489		Block, Housing Support		Appelez-nous	-
20	3400858		Screw		Appelez-nous	-
21	W11252732		Filler, Wrapper (black)   (Replaces: 2201017)				$ 13.07
22	W10802713		Grille (black)   (Replaces: 2198467B)				$ 127.93
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
25	W10856122		Screw (2)   (Replaces: 3400103)				$ 8.27
27	WP488488		Screw   (Replaces: 489290)				$ 8.52
35	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
36	WP2304697		Tube, Filter Inlet   (Replaces: 2304697)				$ 144.47
37	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 121.32
41	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 53.45
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 32.90
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 11.28
47	WP2188756		Cover, Unit   (Replaces: 2204202)				$ 148.75
49	WP2203408B		Hinge Cover (black)   (Replaces: 2203408B)				$ 19.56
50	WP8281227		Screw   (Replaces: 8281227)				$ 10.96
52	549193		Clamp-service Cord				$ 14.06
53	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
54	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.90
55	WP489483		Screw (2)   (Replaces: 489483)				$ 11.41

    View Diagram in Separate Window       Print Part List
