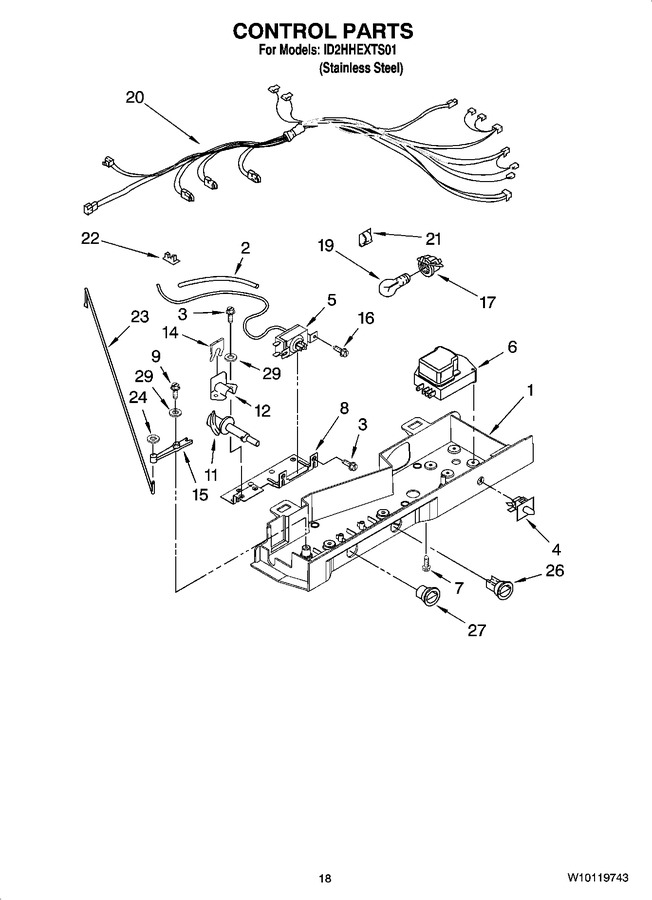

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2311990		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 2196001)				$ 8.35
3	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
4	WP2149705		Light Switch   (Replaces: 2219875)			Immediately	$ 40.40
5	WP2198202		Thermostat   (Replaces: 2198202)			Immediately	$ 78.43
6	4388932		Electronic Control   (Replaces: 2303824)			Immediately	$ 280.44
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
8	2311611		Mounting Bracket		Appelez-nous	-
9	627068		Screw				$ 12.73
11	WP2182195		Cam Assembly   (Replaces: 2182195)				$ 5.13
12	1110560		Bearing Body				$ 11.30
14	WP2196062		Damper Control   (Replaces: 2196062)				$ 11.25
15	2161306		Pivot Arm				$ 9.65
16	WP965173		Screw (2)   (Replaces: 487869)			Immediately	$ 11.87
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
19	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
20	2311633		Control Box Harness				$ 333.11
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
22	1115375		Clip, Wiring				$ 11.15
23	2311631		Connecting Rod		Appelez-nous	-
24	489285		Fastener, Push-on		Appelez-nous	-
26	W10723843		Thermostat Knob   (Replaces: 2311614)				$ 27.92
27	2311615		Control Knob				$ 52.26
29	489203		Spring Washer		Appelez-nous	-
