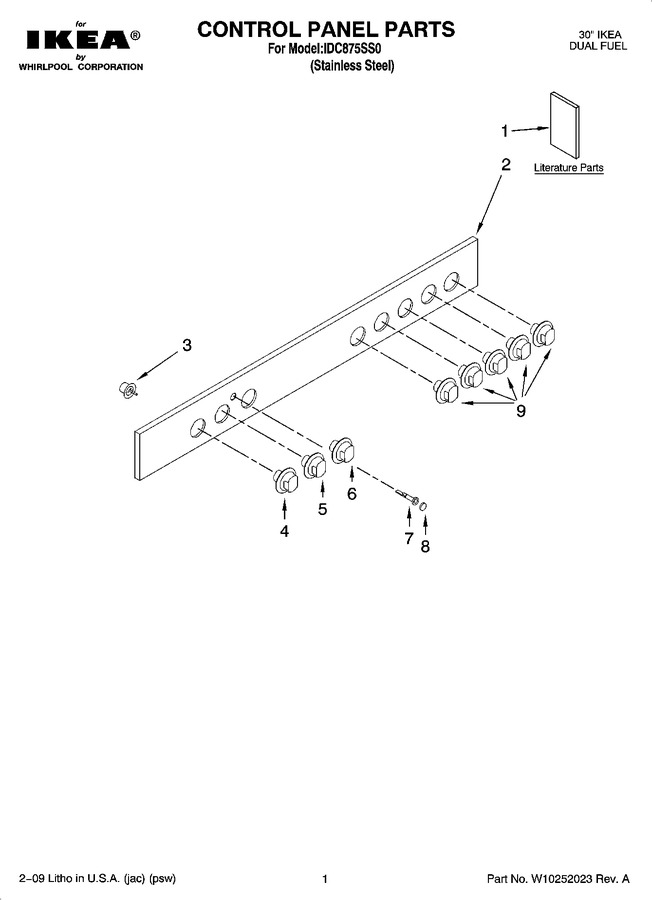

01 - Control Panel Parts
02 - Top Venting Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Cooktop Parts
07 - Burner Box And Manifold Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10253498 | Owners Man |
|
- | |||||
| 1 | W10253499 | Tech Sheet |
|
- | |||||
| 2 | W10204051 | Panel, Control |
|
$ 74.20 | |||||
| 3 | W10204067 | Timer |
|
$ 158.83 | |||||
| 4 | W10245729 | Knob, Timer |
|
- | |||||
| 5 | W10245728 | Knob, Functions |
|
- | |||||
| 6 | W10204303 | Knob, Thermostat |
|
- | |||||
| 7 | W10204298 | Light, Indicator |
|
$ 32.36 | |||||
| 8 | W10250215 | Lens, Light |
|
- | |||||
| 9 | W10202959 | Knob, Burner |
|
$ 34.08 |
