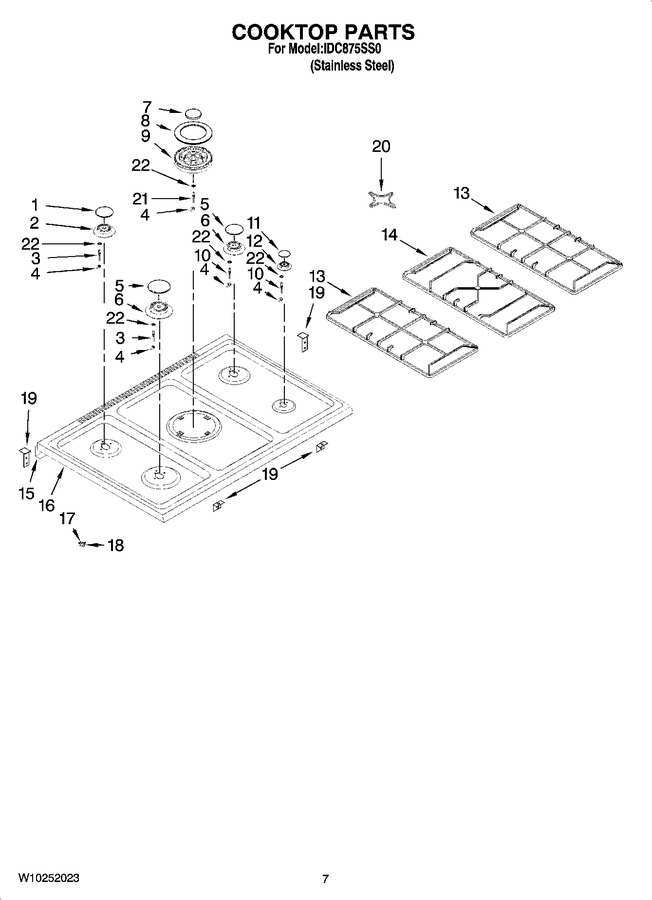

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10204400		Cap, Burner-rapid				$ 69.96
2	W10204044		Burner, Rapid				$ 207.27
3	W10204073		Igniter, Surface				$ 142.82
4	W10250249		Clip, Igniter		Appelez-nous	-
5	W10204401		Cap, Brnr-semi Rap				$ 31.67
6	W10204045		Burner, Semi-rapid		Appelez-nous	-
7	W10205091		Cap, Small Tcb		Appelez-nous	-
8	W10205090		Cap, Large Tcb		Appelez-nous	-
9	W10204046		Burner, Trple Crwn				$ 156.47
10	W10204072		Igniter, Surface		Appelez-nous	-
11	W10204399		Cap, Burner-aux		Appelez-nous	-
12	W10204047		Burner, Auxiliary		Appelez-nous	-
13	W10202963		Grate, Burner (2)				$ 175.13
14	W10202962		Grate, Burner		Appelez-nous	-
15	W10250974		Brace, Rear		Appelez-nous	-
16	W10204398		Cooktop				$ 391.02
17	W10204052		Thermostat - 60c				$ 142.85
18	W10250620		Bracket, Thermstat		Appelez-nous	-
19	W10250319		Support, Cooktop (left)		Appelez-nous	-
19	W10250894		Support, Cooktop (rear (2))		Appelez-nous	-
19	W10250321		Support, Cooktop (right)		Appelez-nous	-
20	W10250822		Grate, Coffee		Appelez-nous	-
21	W10250835		Igniter, Surface		Appelez-nous	-
22	W10250892		Gasket, Igniter		Appelez-nous	-
	W10253505		Orifice Ng 1.55		Appelez-nous	-
	W10253504		Orifice Ng 0.9				$ 28.78
	W10253503		Orifice Ng 1.2 (2)		Appelez-nous	-
	W10253502		Orifice Ng 1.5				$ 29.93
	W10252734		Lp Kit		Appelez-nous	-
