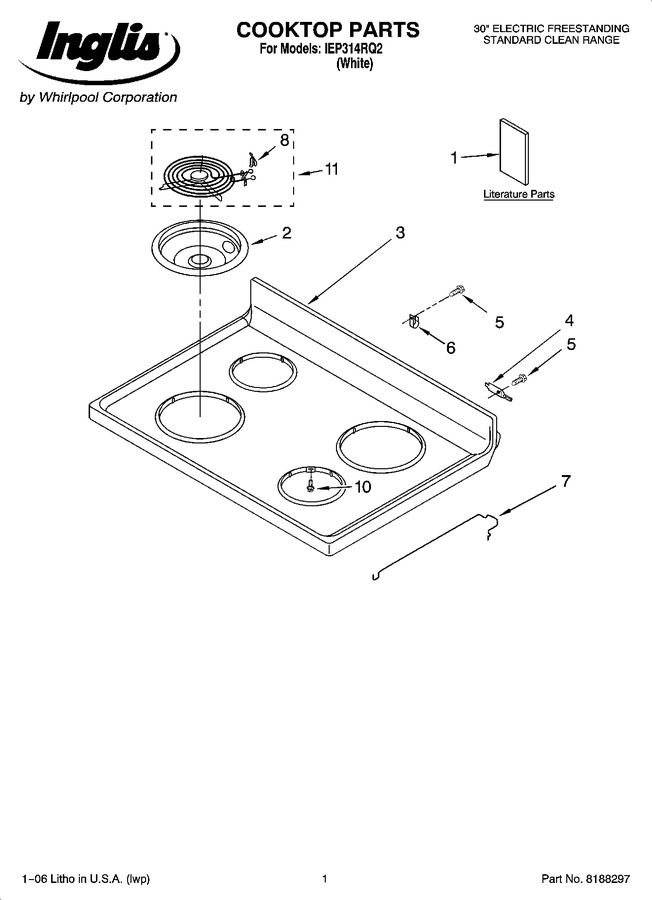

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10017680 | Guide, Use & Care |
|
- | |||||
| 1 | 9757142 | Instruct, Install (template) (english/spanish) |
|
- | |||||
| 1 | 9757143 | Instruct, Install (template) (english/french) |
|
- | |||||
| 1 | 9758377 | Instructions, Installation |
|
- | |||||
| 1 | 4454084 | Sheet, Tech |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | W10196405RW | Bowl, Drip (8`` Chrome (1)) (Replaces: 3195209) |
|
Immediately | $ 21.82 | ||||
| 2 | WPW10196406 | Bowl, Drip (6`` Chrome (3)) (Replaces: 3195208) |
|
Immediately | $ 13.39 | ||||
| 3 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 419.31 | |||||
| 4 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 11.76 | |||||
| 7 | WP3195812 | Rod, Support (2) (Replaces: 3195812) |
|
Immediately | $ 8.73 | ||||
| 8 | WP3195917 | Clip, Spring (Replaces: 3195917) |
|
Immediately | $ 8.12 | ||||
| 10 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 11 | WP9761346 | Element, Surface (8`` (2)) (Replaces: 9761346) |
|
Immediately | $ 104.62 | ||||
| 11 | WPW10345407 | Element, Surface (6`` (2)) (Replaces: 9761348) |
|
Immediately | $ 165.42 |
