SELECT A DIAGRAM

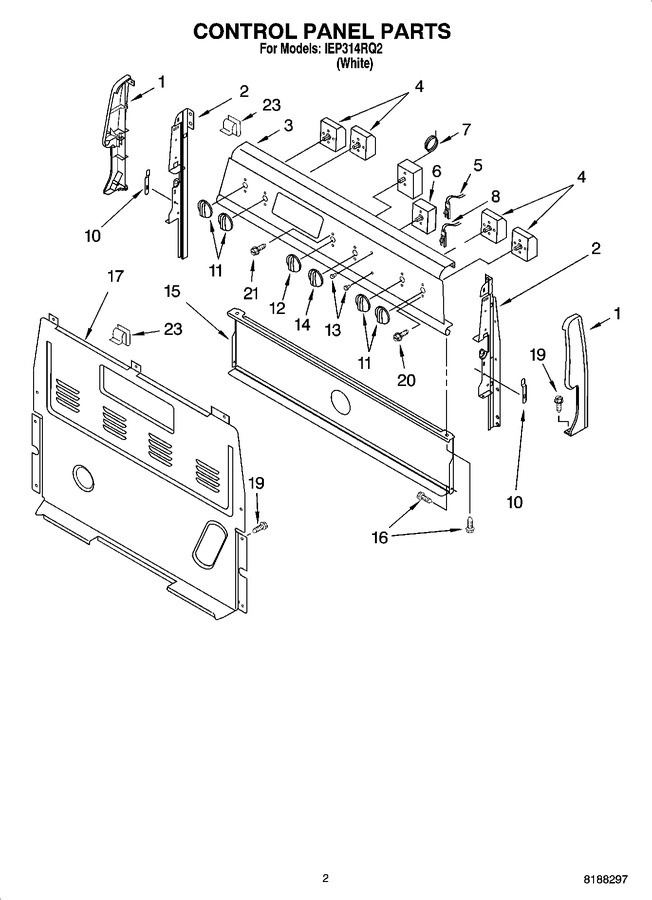

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3195318		Endcap (left Hand-white)		Appelez-nous	-
1	3195319		Endcap (right Hand-white)		Appelez-nous	-
2	8523408		Support, Endcap (left Hand)		Appelez-nous	-
2	8523409		Support, Endcap (right Hand)		Appelez-nous	-
3	9761901		Panel, Backguard (white)		Appelez-nous	-
4	5500-287		Switch, Infinite (use W/ 6`` Element)   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (use W/ 8`` Element)   (Replaces: 3148953)			Immediately	$ 52.39
5	8273303		Indicator, Surface		Appelez-nous	-
6	WP3188987		Switch, Selector   (Replaces: 3188987)				$ 162.14
7	WP9762852		Thermostat   (Replaces: 8524329)				$ 406.95
8	314031		Indicator, Oven				$ 62.88
10	3196200		Clip, Spring (2)				$ 10.45
11	3196028		Knob, Infinite (4) (white)				$ 17.73
12	3196049		Knob, Thermostat (white)				$ 21.30
13	WP3196068		Lens, Ind. (2)   (Replaces: 3196068)			Immediately	$ 6.26
14	3196031		Knob, Selector (white)				$ 62.33
15	8053912		Shield, Heat				$ 34.55
16	W10276642		Screw   (Replaces: 4449746)				$ 6.41
17	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
19	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
20	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
21	WP3196170		Screw-thermostat   (Replaces: 3196170)				$ 7.55
23	WP8273564		Clip - Cover   (Replaces: 8273564)				$ 12.66

    View Diagram in Separate Window       Print Part List
