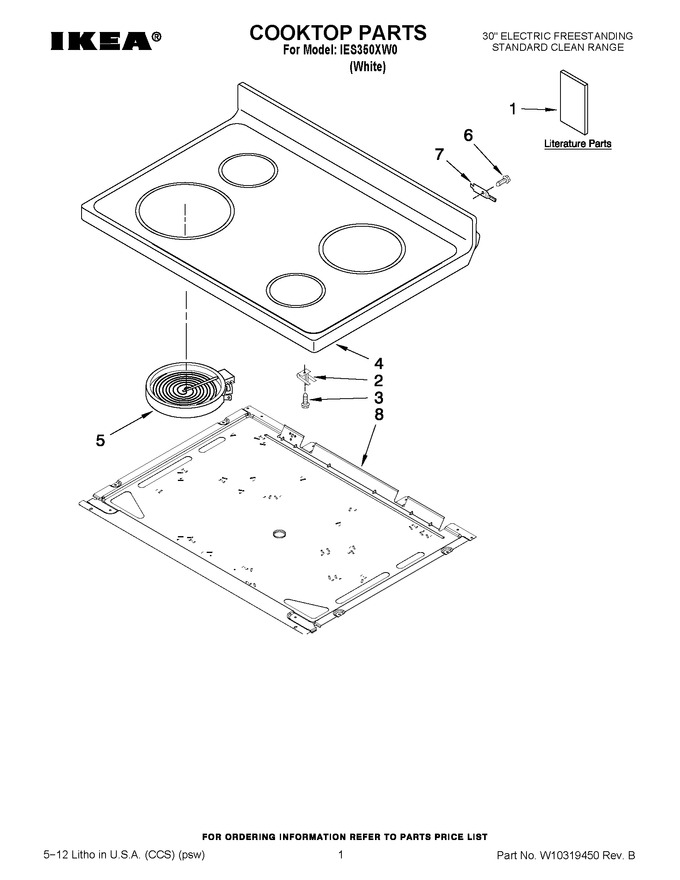

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10252706 | Instructions Installations |
|
- | |||||
| 1 | 9757143 | Template, Anti-tip (english/french) |
|
- | |||||
| 1 | W10304842 | Owners Manual |
|
- | |||||
| 1 | W10198578 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 1 | 9757142 | Template, Anti-tip (english/spanish) |
|
- | |||||
| 2 | WPW10225448 | Spring, Locator (Replaces: W10162042) |
|
Immediately | $ 10.40 | ||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | W10248202 | Cooktop (Replaces: W10202165) |
|
$ 603.76 | |||||
| 5 | W10823699 | Element, Surface (lr/rf - 1500 W) (Replaces: 8523697) |
|
Immediately | $ 169.95 | ||||
| 5 | WPW10242957 | Element, Surface (lf/rr - 2000 W) (Replaces: 8523695) |
|
$ 332.00 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 8 | W10170526 | Pan, Radiant |
|
$ 270.57 |
