01 - Cooktop Parts

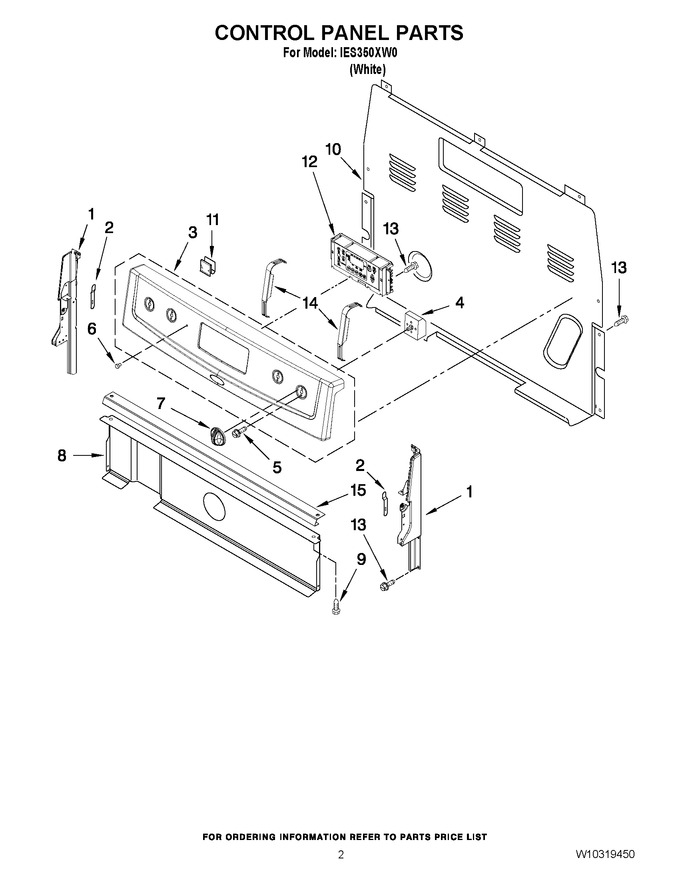

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 3 | W10303973 | Panel, Console |
|
$ 86.32 | |||||
| 4 | 5500-287 | Switch, Infinite (lf/rr (green)) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 4 | WP3148952 | Switch, Infinite (lf/rr (yellow)) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 5 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | W10259208 | Knob, Infinite |
|
$ 80.29 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | 3196166 | Screw |
|
$ 7.36 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 | |||||
| 12 | WPW10310975 | Control, Range (Replaces: W10303454) |
|
$ 492.03 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | W11230932 | Brkt-mntg, Eoc (Replaces: W10138683) |
|
Immediately | $ 84.81 | ||||
| 15 | W10525121 | Brkt-mntg, Console (Replaces: W10182322) |
|
$ 98.85 |
