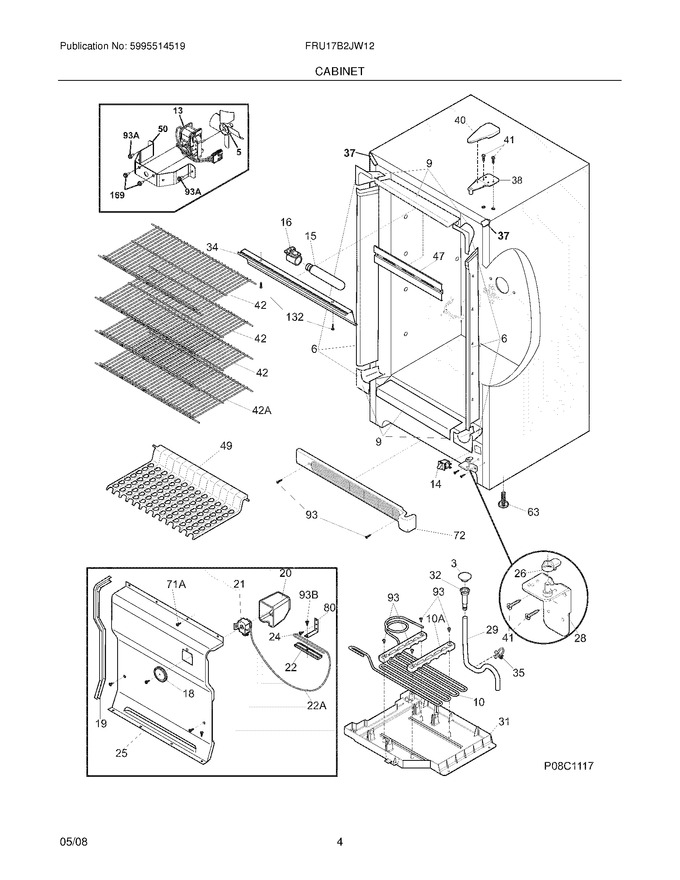

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 69.08 | |||||
| 6 | 297200600 | Breaker Kit W/corners,no Lock Slot |
|
$ 52.36 | |||||
| 9 | 297200100 | Breaker Kit W/corners,32`` ,top And Bottom |
|
$ 65.87 | |||||
| 14 | 216822900 | Switch,light/lamp ,ramp (Replaces: 216998000) |
|
Immediately | $ 77.96 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216846400) |
|
Immediately | $ 81.18 | ||||
| 16 | 297139501 | Socket,light/lamp ,25 W (Replaces: 216817600) |
|
$ 21.69 | |||||
| 18 | 216707200 | Knob,temp Control |
|
$ 49.00 | |||||
| 19 | 216204900 | Gasket, Evap Cover |
|
$ 51.45 | |||||
| 20 | 216230300 | Cover, Temp Control |
|
$ 49.88 | |||||
| 22 | 216823500 | Clamp, Cap Tube, Cold Control |
|
$ 15.27 | |||||
| 24 | 5304460604 | Screw,type A ,10-24 X 3/8 |
|
- | |||||
| 25 | 297098850 | Cover-evaporator |
|
$ 83.83 | |||||
| 26 | 216503300 | Ramp,door Closer |
|
$ 9.80 | |||||
| 28 | 297283900 | Hinge-bottom,stepped Pin (Replaces: 297240800) |
|
Immediately | $ 60.25 | ||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313501) |
|
Immediately | $ 17.67 | ||||
| 31 | 297165800 | Pan-drain |
|
$ 99.06 | |||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 15.27 | |||||
| 34 | 216816200 | Shield-light |
|
$ 70.72 | |||||
| 35 | 216273000 | Clip, Drain Hose |
|
$ 24.91 | |||||
| 37 | 5303918606 | Trim-cabinet Corner,white ,(2) (Replaces: 241611301) |
|
$ 7.88 | |||||
| 38 | 297283803 | Hinge-upper (Replaces: 297164300) |
|
Immediately | $ 21.69 | ||||
| 40 | 297164400 | Cover-hinge |
|
$ 14.06 | |||||
| 41 | 240578902 | Screw,hex Head ,1/4-20 X 5/8 |
|
Immediately | $ 15.75 | ||||
| 42 | 216458400 | Shelf,14.50x27.88 ,(3) |
|
- | |||||
| 47 | 216661601 | Baffle-plate |
|
$ 57.51 | |||||
| 49 | 216937701 | Trivet (Replaces: 216937700) |
|
$ 110.85 | |||||
| 50 | 216394050 | Bracket,fan Motor Mount |
|
$ 25.28 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 42.65 | ||||
| 72 | 297036907 | Grille/kickplate,32`` ,white (Replaces: 297036900) |
|
$ 43.65 | |||||
| 80 | 06594601 | Bracket, Control |
|
$ 17.64 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 12.05 | ||||
| 132 | 5304460601 | Screw,6-20ab X 3/8 |
|
- | |||||
| 169 | 216912401 | Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2) |
|
$ 14.18 | |||||
| 10A | 297177400 | Bracket,(2) ,drain Pan |
|
- | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 67.73 | |||||
| 42A | 216458200 | Shelf,12.50x27.88 ,white |
|
- | |||||
| 71A | 297146800 | Screw,8-18ab X 0.470 ,evap Panel |
|
- | |||||
| 93A | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping |
|
$ 14.46 | |||||
| 93B | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 15.17 | |||||
| F10 | 297175600 | Heater-drain Pan |
|
- | |||||
| F13 | 297309000 | Motor,fan ,115 V (Replaces: 216934100) |
|
Immediately | $ 61.47 | ||||
| F21 | 5304497345 | Control-temperature (Replaces: 216807800) |
|
Immediately | $ 122.38 | ||||
| F5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 54.48 | ||||
| NI | 216502400 | Grommet-shelf Mtg |
|
$ 18.48 | |||||
| NI | 216697904 | Energy Guide |
|
- | |||||
| NI | 125963-48 | Insulation,24`` ,drain Tube (Replaces: 297001704) |
|
Immediately | $ 65.73 |
