SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

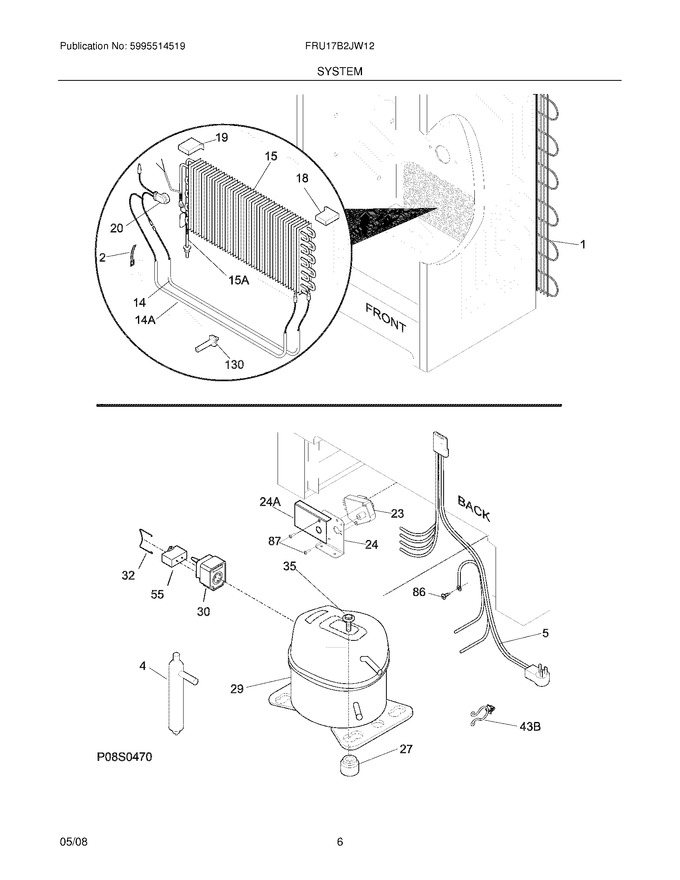

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 66.47
5	297244600		Harness-main				$ 144.93
14	216730700		Heater-defrost			Immediately	$ 129.38
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	216731001		Thermostat, Defrost			Immediately	$ 93.84
24	216968501		Bracket-timer				$ 74.70
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 14.46
30	216954208		Controller,compressor ,5 Speed				$ 82.69
32	297030500		Clip,controller			Immediately	$ 13.39
35	297177200		Bolt,compressor		Appelez-nous	-
55	297286812		Capacitor-run   (Replaces: 218909911)			Immediately	$ 13.09
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 15.17
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
130	297244700		Support,evaporator Mtg				$ 4.73
15A	297217900		Heat Exchanger   (Replaces: 297231800)			Immediately	$ 102.02
24A	297207900		Guard,timer				$ 5.72
43B	297315800		Clip   (Replaces: 297048400)				$ 11.25
F1	5300083897		Condenser				$ 598.19
F14A	216730500		Heater-internal		Appelez-nous	-
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 190.38
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 63.94
F29	5304507767		Compressor,w/o Electricals   (Replaces: 297224800)				$ 807.12
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 35.19
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 76.31
NI	216695300		Relay				$ 86.63
NI	216502500		Sleeve,suction Line				$ 12.05
NI	216683900		Thermostat,service Part				$ 61.62
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 14.96

    View Diagram in Separate Window       Print Part List
