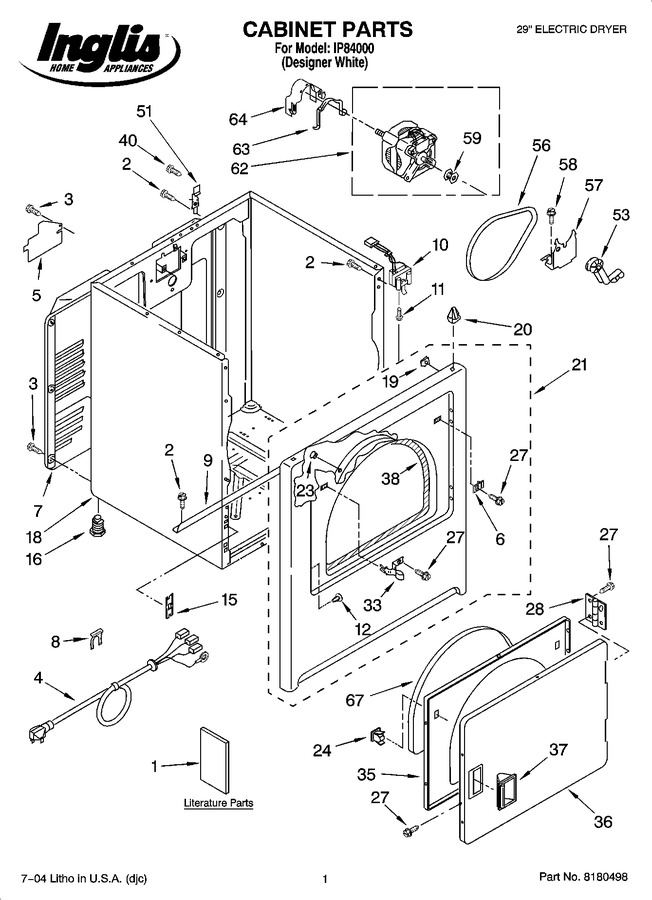

01 - Cabinet Parts
02 - Top And Console Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8535831 | Instructions, Installation |
|
- | |||||
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | 8528189 | Wiring Diagram |
|
- | |||||
| 1 | 8557472 | Use & Care Guide |
|
- | |||||
| 1 | 8535902 | Label, Energy Guide |
|
- | |||||
| 1 | 8533784 | Sheet, Cycle Feature |
|
- | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | W11095079 | Cord, Power (Replaces: 3394208) |
|
Immediately | $ 131.66 | ||||
| 5 | 3394202 | Cover, Block |
|
$ 9.15 | |||||
| 6 | WP3403630 | Plug, Strike Hole (Replaces: 3403630) |
|
$ 7.53 | |||||
| 7 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 341.30 | |||||
| 8 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.40 | ||||
| 9 | 8541400 | Bracket, Cabinet |
|
- | |||||
| 10 | WP3406107 | Door, Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 31.20 | ||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.70 | |||||
| 12 | WP3404413 | Plug, Hinge Hole (4) (Replaces: 3404413) |
|
Immediately | $ 7.95 | ||||
| 15 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 15.56 | ||||
| 16 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 18 | 8533643 | Cabinet (includes Illus. 9) (Replaces: 8530603) |
|
$ 399.26 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 12.68 | ||||
| 21 | W10806345 | Front Panel Assembly (Replaces: 3403444) |
|
$ 232.74 | |||||
| 23 | 279220 | Clip, Felt Pad (3) (Replaces: 685203) |
|
$ 20.65 | |||||
| 24 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 27 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.57 | |||||
| 28 | WPW10362431 | Hinge, Door (Replaces: 3405514) |
|
Immediately | $ 7.91 | ||||
| 33 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 20.99 | ||||
| 35 | WP3402341 | Door, Rear (Replaces: 3402341) |
|
$ 198.77 | |||||
| 36 | W10861227 | Door, Front (Replaces: 3402335) |
|
$ 256.44 | |||||
| 37 | WP3405184 | Handle, Door (Replaces: 3405184) |
|
$ 76.01 | |||||
| 38 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 78.78 | ||||
| 40 | W10850756 | Screw, 10-32 X 5/8 (Replaces: 697776) |
|
$ 7.76 | |||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.82 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 8066065) |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 121.57 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 13.37 | ||||
| 59 | WP8066184 | Pulley, 60 Hz. (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 62 | 279827 | Motor Assembly 60 Hz. (Replaces: 8538262) |
|
Immediately | $ 191.95 | ||||
| 63 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.83 | |||||
| 64 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 7.82 | ||||
| 67 | W10861521 | Seal, Door (Replaces: 3405246) |
|
Immediately | $ 58.69 |
