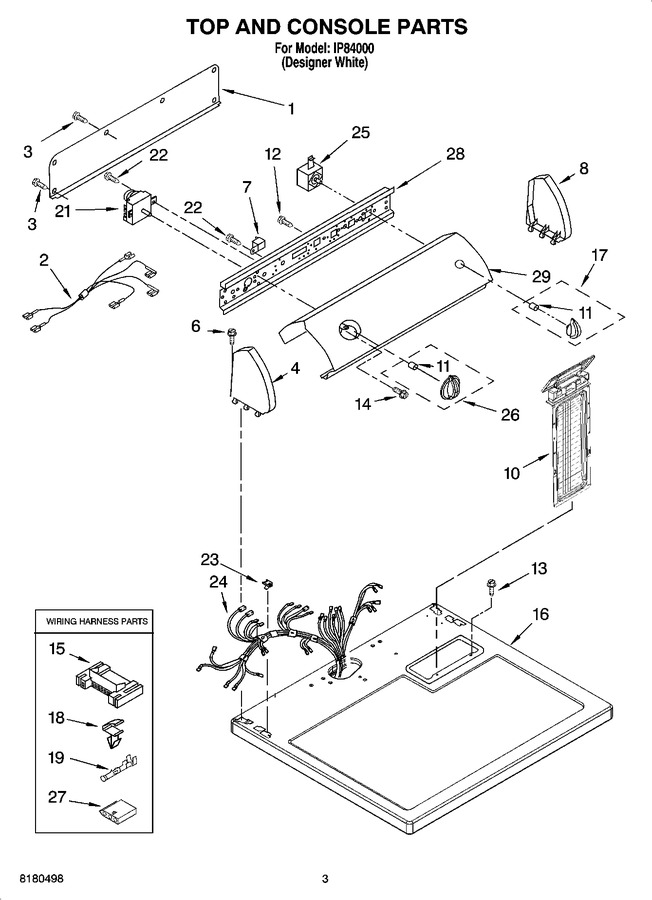

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 128.87 | |||||
| 2 | 8539888 | Wire, Jumper (pts To Buzzer) |
|
- | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.11 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 8 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8558463) |
|
Immediately | $ 52.03 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 3400859 | Screw, Grounding (8-18 X 7/32) (Replaces: 8533951) |
|
$ 13.22 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 51.86 | ||||
| 16 | 8557930 | Top |
|
- | |||||
| 17 | WP8543270 | Knob, Control (Replaces: 8543270) |
|
Immediately | $ 8.84 | ||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 19 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 21 | WP8299778 | Timer, 60 Hz. (Replaces: 8299778) |
|
Immediately | $ 232.09 | ||||
| 22 | WPW10139210 | Screw, Mounting (8-18 X 5/16) (Replaces: 3390646) |
|
$ 7.50 | |||||
| 23 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 24 | 8299870 | Harness, Wiring |
|
$ 58.16 | |||||
| 25 | WP3404233 | Switch, Push-to-start (Replaces: 3404233) |
|
Immediately | $ 109.62 | ||||
| 26 | 8543273 | Timer Knob Assembly |
|
$ 6.44 | |||||
| 27 | 3936144 | Connector |
|
$ 20.21 | |||||
| 28 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 29 | 8557465 | Panel, Control |
|
- |
