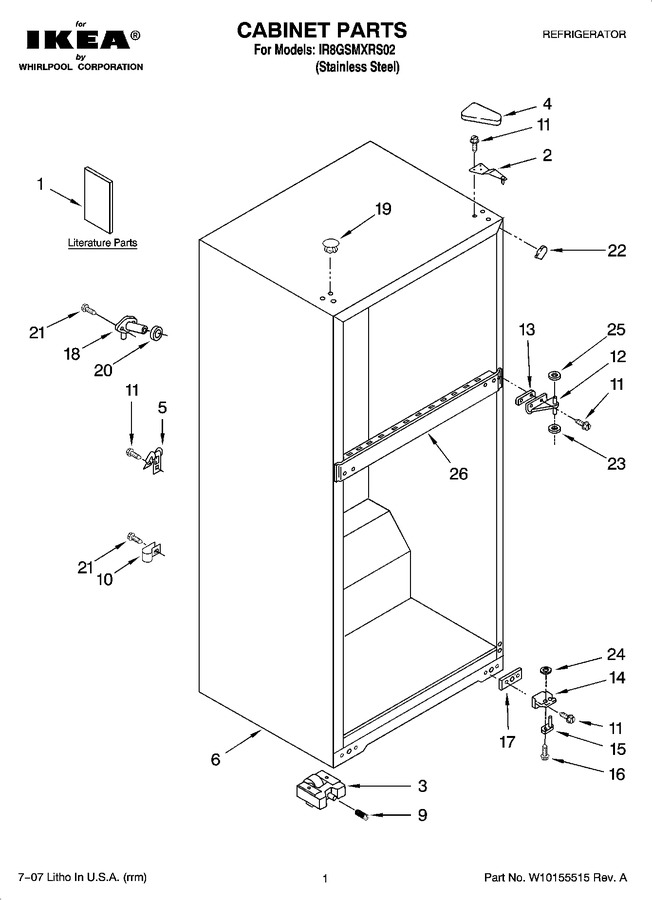

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10146196		Service & Wiring Sheet		Appelez-nous	-
1	W10123830		Energy Label		Appelez-nous	-
1	2316075		Use & Care Guide		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2261963)			Immediately	$ 99.45
3	2324094		Roller, Front				$ 342.09
4	WP2213363		Cover, Hinge   (Replaces: 2213363)			Immediately	$ 18.21
5	549193		Clamp-cord				$ 13.39
9	2222100		Screw				$ 99.81
10	WP488366		Clamp, Tube (water Supply)   (Replaces: 489385)				$ 11.18
11	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
12	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 78.16
13	2215385		Shim, Hinge Center				$ 86.99
14	WP2325482		Hinge Butt   (Replaces: 2221926)			Immediately	$ 76.19
15	9791682		Hinge-pin, Bottom				$ 26.60
16	WP3428970		Screw   (Replaces: 3428970)				$ 10.91
17	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.77
18	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 11.99
19	WP2183998		Hole Plug (6)   (Replaces: 2183998)				$ 18.10
20	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
21	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.79
22	W11500943		Corner Filler   (Replaces: 2215384)				$ 7.60
23	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
24	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
25	WP488296		Washer   (Replaces: 488296)				$ 7.19
