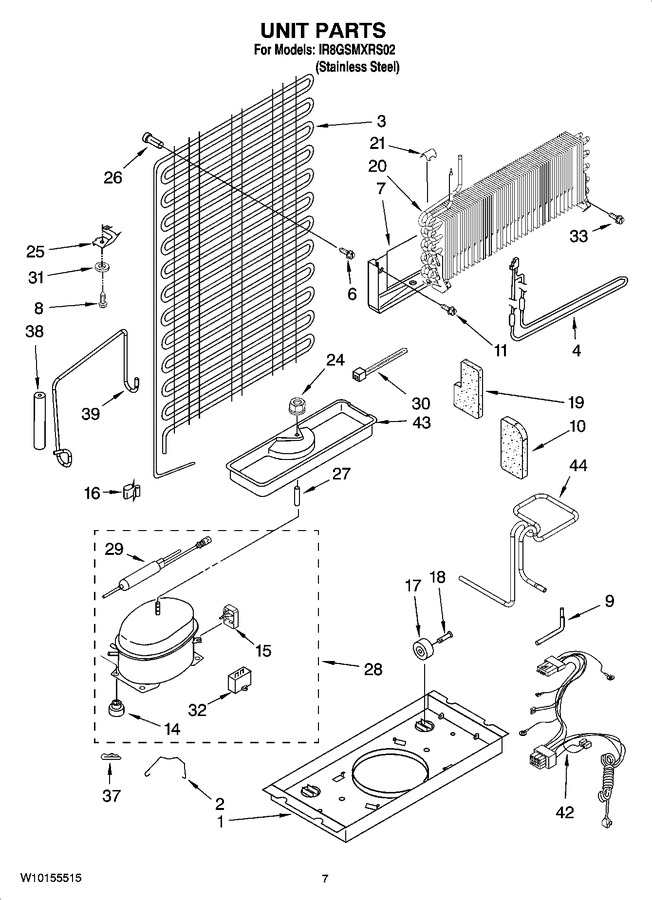

04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10127453 | Support Plate, Compressor |
|
- | |||||
| 2 | W10141545 | Strap, Bale |
|
- | |||||
| 3 | WPW10219349 | Condenser (Replaces: 2252731) |
|
$ 276.86 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 93.70 | ||||
| 6 | 8533892 | Screw |
|
- | |||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | 2256637 | Screw |
|
$ 13.53 | |||||
| 9 | W10140201 | Tube, Process |
|
- | |||||
| 10 | 2262192 | Wedge-evaporator |
|
- | |||||
| 11 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 14 | WP4387558 | Grommet (service) (Replaces: 4387558) |
|
$ 6.95 | |||||
| 14 | WP2163786 | Grommet (production) (Replaces: 2222084) |
|
$ 7.96 | |||||
| 15 | WPW10197428 | Start- Device Combination (start Relay And Overload For Production Compressor Only) (Replaces: W10128791) |
|
Immediately | $ 89.21 | ||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 7.19 | |||||
| 19 | 2262191 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 317.35 | ||||
| 21 | 9791833 | Clip, Evaporator Tube |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.85 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (Replaces: 2172892) |
|
- | |||||
| 26 | 2258452 | Spacer, Condenser |
|
- | |||||
| 27 | 2176844 | Spacer |
|
- | |||||
| 28 | W10233960 | Compressor (includes Illus.14,29 & 32) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10141544) |
|
Immediately | $ 513.66 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 30.78 | ||||
| 30 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.90 | |||||
| 31 | 8526417 | Washer (Replaces: VS611) |
|
$ 13.94 | |||||
| 32 | WPW10662129 | Capacitator (production) (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 32 | WPW10662129 | Capacitator (service) (Replaces: 1118576) |
|
Immediately | $ 58.86 | ||||
| 33 | 8533919 | Screw |
|
- | |||||
| 37 | 24364001 | Clip, Compressor |
|
- | |||||
| 38 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 39 | W10141543 | Extension, Tube-heat |
|
- | |||||
| 42 | 2258529 | Wire Assy. Unit |
|
$ 262.19 | |||||
| 43 | 2176668 | Tray, Evaporator |
|
$ 77.40 | |||||
| 44 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 44 | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| 44 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| 44 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| 44 | W10141038 | Tube, Discharge (incl. Pre Cooler) |
|
- | |||||
| 44 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| 44 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 44 | 978028 | Valve, Access (1/2) |
|
- |
