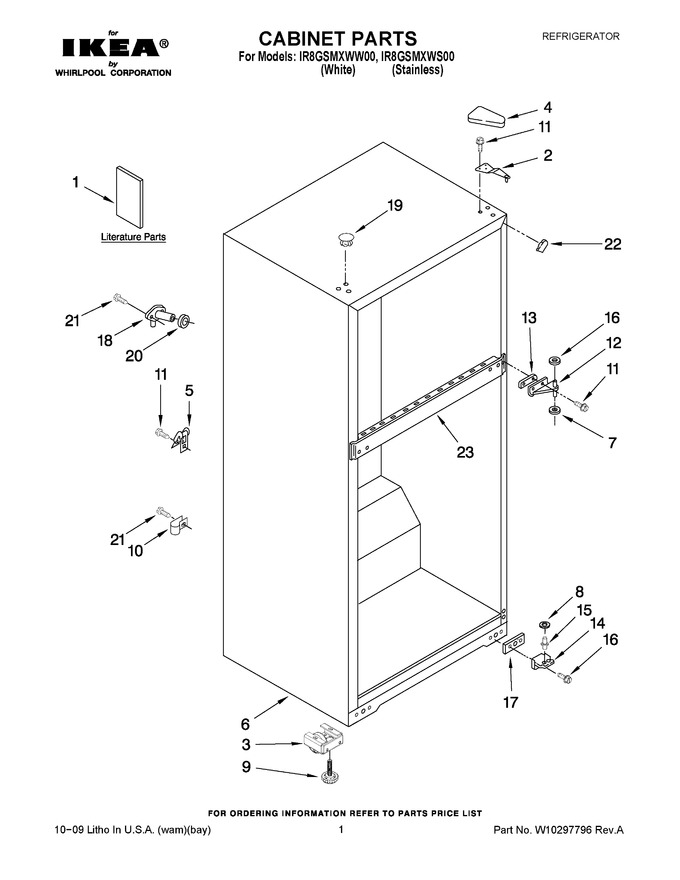

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10256558 | Use & Care Guide |
|
- | |||||
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | 2265208 | Service & Wiring |
|
- | |||||
| 1 | W10256565 | Energy Label |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | WPW10142530 | Roller, Front (Replaces: W10142530) |
|
Immediately | $ 118.10 | ||||
| 4 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 19.12 | ||||
| 4 | WP2213360 | Cover-hinge (white) (Replaces: 2213360) |
|
$ 20.19 | |||||
| 5 | 549193 | Clamp-cord |
|
$ 14.06 | |||||
| 6 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 7 | WP487802 | Washer (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 8 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 9 | WPW10133299 | Leveler Screw (Replaces: W10133299) |
|
$ 12.35 | |||||
| 10 | WP488366 | Clamp, Tube (water Supply) (Replaces: 489385) |
|
$ 11.92 | |||||
| 11 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 12 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 85.08 | |||||
| 13 | 2215385 | Shim, Hinge (black) |
|
$ 91.34 | |||||
| 13 | 2166043 | Shim, Hinge (white) |
|
$ 69.76 | |||||
| 14 | WP2325482 | Hinge Butt (Replaces: 2325482) |
|
Immediately | $ 80.00 | ||||
| 15 | WP2325483 | Hinge-pin, Bottom (Replaces: 2325483) |
|
Immediately | $ 7.55 | ||||
| 16 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 17 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 8.16 | ||||
| 18 | WP2196157 | Fitting,water Tube (Replaces: 2174760) |
|
Immediately | $ 12.59 | ||||
| 19 | WP2151652 | Hole Plug (6) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 20 | WP1106508 | Seal (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 21 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 22 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 8.09 | |||||
| 22 | W11500943 | Corner Filler (black) (Replaces: 2215384) |
|
$ 7.98 | |||||
| 23 | N/P | Rail, Center (not Serviced) |
|
- |
