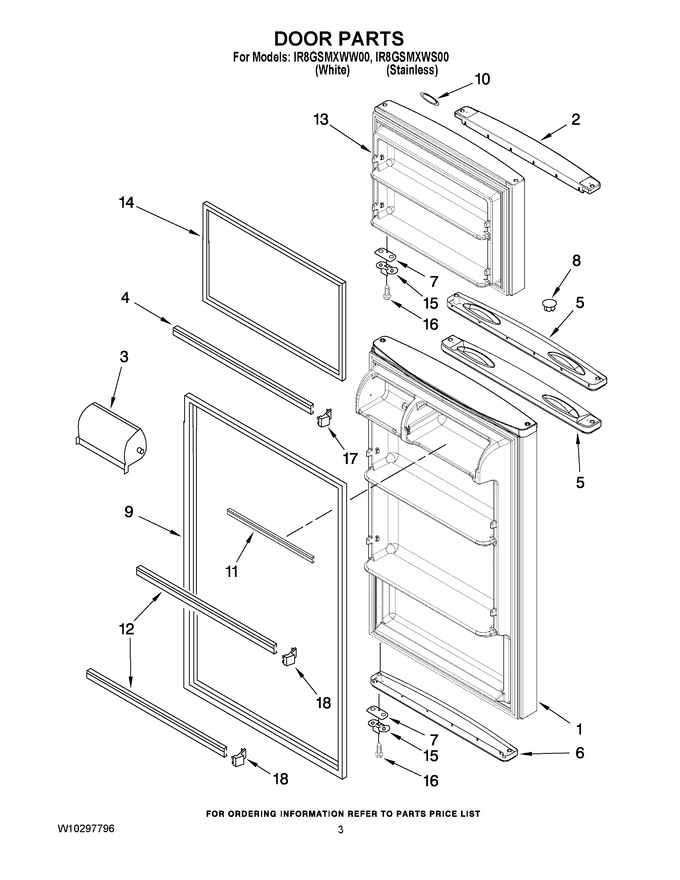

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10209799		Refrigerator Door Assembly (includes Illus. 9) (stainless)		Appelez-nous	-
1	2263252W		Refrigerator Door Assembly (includes Illus. 9) (white)		Appelez-nous	-
2	2265644W		Endcap, Top (white)				$ 148.05
2	2252863		Endcap, Top (black)			Immediately	$ 148.12
3	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 58.76
4	WP2266727		Trim-door (2)   (Replaces: 2266727)			Immediately	$ 92.50
5	2222045		Endcap, Handle (black)				$ 41.70
5	2265645W		Endcap, Handle (white)				$ 209.50
6	2222048		Endcap, Bottom (black)		Appelez-nous	-
6	2265647W		Endcap, Bottom (white)				$ 63.82
7	WP2258681W		Shim, Door Stop   (Replaces: 2258681W)			Immediately	$ 7.19
8	WP2212648		Hole Plug   (Replaces: 2212648)			Immediately	$ 7.80
9	WP2319264B		Door Gasket (black)   (Replaces: 2264723)				$ 308.43
9	WP2319264T		Door Gasket (mist Beige)   (Replaces: W10190032)			Immediately	$ 192.71
10	2325672W		Nameplate		Appelez-nous	-
11	W11129820		Trim, Door Shelf   (Replaces: W10234242)			Immediately	$ 121.28
12	WP2266738		Trim, Door   (Replaces: 2266738)				$ 111.69
13	W10209792		Freezer Door Assembly (includes Illus. 14) (stainless)		Appelez-nous	-
13	2263251W		Freezer Door Assembly (includes Illus. 14) (white)		Appelez-nous	-
14	WP2319263B		Door Gasket (black)   (Replaces: 2264722)			Immediately	$ 255.50
14	WP2319263T		Door Gasket (mist Beige)   (Replaces: W10190031)			Immediately	$ 169.53
15	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
16	W10276642		Screw   (Replaces: 8533904)				$ 6.10
17	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 12.62
18	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 12.55
