Diagram for 01 - Door And Panel Parts
01 - Door And Panel Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Door And Latch Parts
03 - Door And Latch Parts

Diagram for 04 - Lower Washarm Parts
04 - Lower Washarm Parts

Diagram for 05 - Heater Parts
05 - Heater Parts

Diagram for 06 - Fill And Overfill Parts
06 - Fill And Overfill Parts

Diagram for 07 - Tub And Frame Parts
07 - Tub And Frame Parts

Diagram for 08 - Pump And Motor Parts
08 - Pump And Motor Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Upper Wash And Rinse Parts
10 - Upper Wash And Rinse Parts

Diagram for 11 - Lower Rack Parts, Optional Parts (not Included)
11 - Lower Rack Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8575348 Instructions, Installation Appelez-nous -
1 W10066090 Energy Guide Appelez-nous -
1 W10073820 Guide, Use & Care Appelez-nous -
1 W10082651 Tech Sheet Appelez-nous -
2 W11613572 Arm, Hinge (right)   (Replaces: 8534857) In-Stock Immediately $ 83.93

2 W11806566 Arm, Hinge (left)   (Replaces: 8534858) In-Stock Immediately $ 71.77

3 8268983 Stiffener, Door Special Order $ 38.77

4 W10073210 Panel Front (includes 6) Appelez-nous -
5 WPW10441007 Access Panel   (Replaces: 8573256) Special Order $ 170.94

6 WP8269016 Clip, Ground   (Replaces: 8269016) Special Order $ 11.21

8 WP8573287 Toe Panel (includes 6)   (Replaces: 8573287) Special Order $ 177.69

9 8269740 Clip, Grounding Special Order $ 6.21

12 WP3400836 Screw   (Replaces: 3400836) Special Order $ 8.10

13 WP681414 Screw,   (Replaces: 343641) In-Stock Immediately $ 8.47

15 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.80

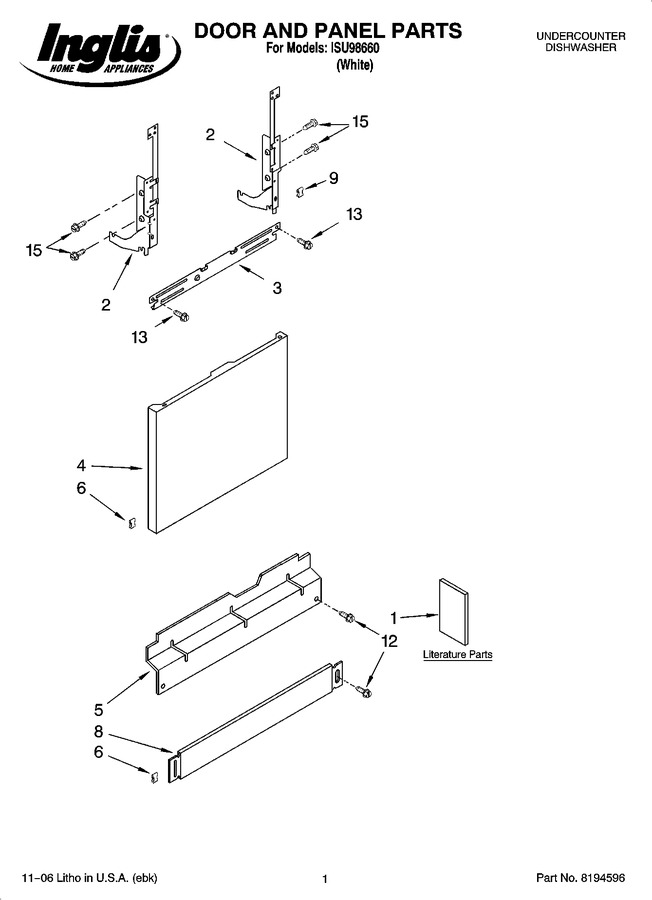

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for ISU98660
