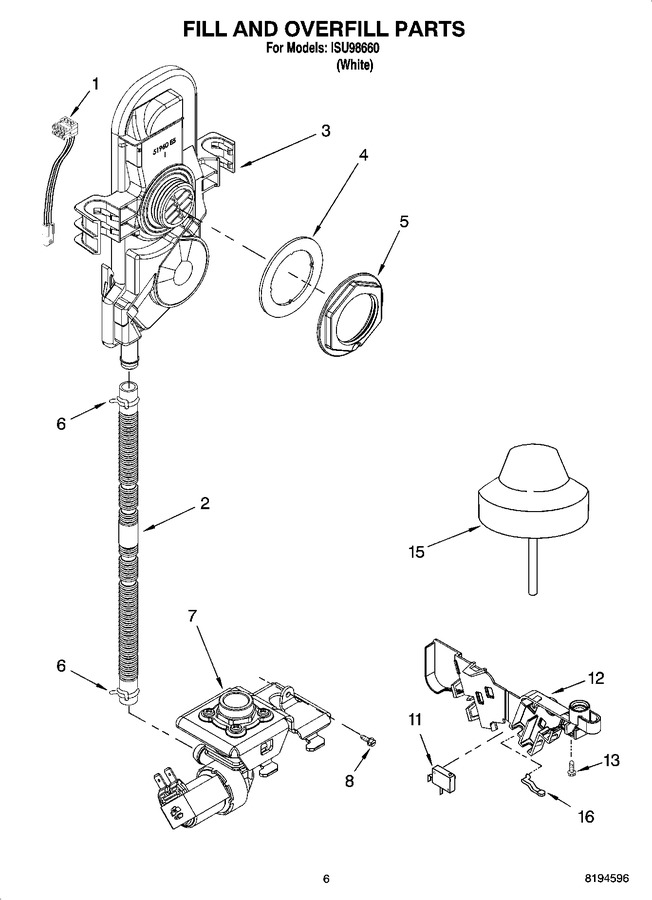

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10070120 | Wire, Jumper |
|
$ 41.30 | |||||
| 2 | W10041920 | Hose, Inlet |
|
$ 41.43 | |||||
| 3 | W10041900 | Water Inlet (also Order Item 4) |
|
$ 71.36 | |||||
| 4 | WP8531323 | Gasket (Replaces: 8531323) |
|
Immediately | $ 41.07 | ||||
| 5 | WPW10508676 | Nut, Inlet (also Order Item 4) (Replaces: 8531326) |
|
$ 19.35 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 8.82 | ||||
| 7 | WPW10158389 | Fill Valve Assembly (Replaces: 8563405) |
|
Immediately | $ 68.49 | ||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 11 | WP8268909 | Switch, Overfill Control (Replaces: 8268909) |
|
$ 82.06 | |||||
| 12 | WPW10175383 | Standpipe, Overfill (Replaces: 8545881) |
|
$ 89.27 | |||||
| 13 | WP304231 | Screw, (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 15 | WP8268913 | Float & Retainer Assembly (Replaces: 8268913) |
|
Immediately | $ 108.96 | ||||
| 16 | WP8268892 | Lever, Overflow Switch (Replaces: 8268892) |
|
Immediately | $ 57.46 |
