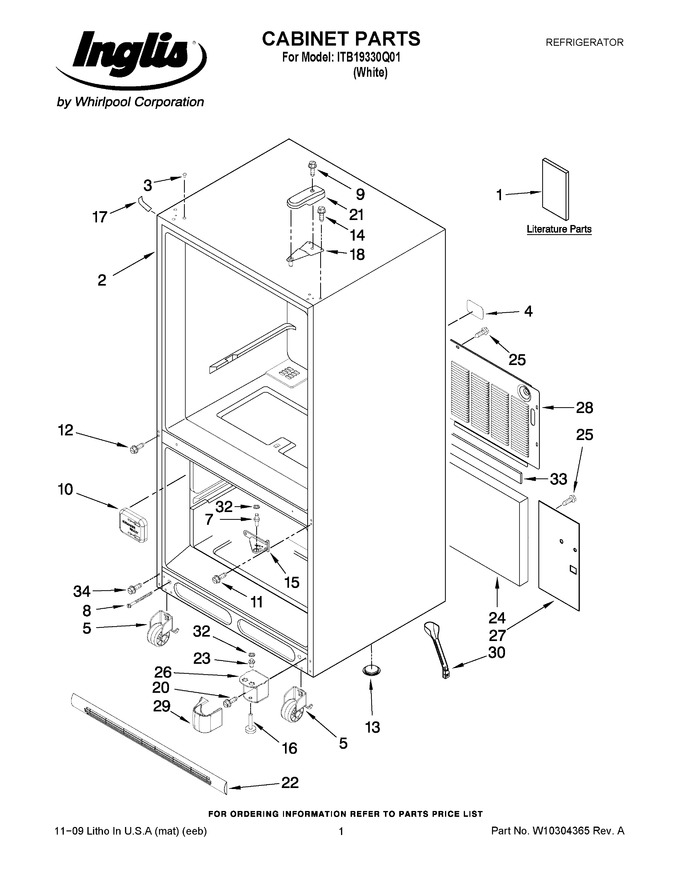

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10279338 | Tech Sheet |
|
- | |||||
| 1 | W10175450 | Use & Care Guide |
|
- | |||||
| 1 | W10204311 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WP67001130 | Plug, Button (3) (white) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 4 | W11685757 | Label, Fill Tube (Replaces: 12249902) |
|
$ 7.06 | |||||
| 5 | 12580304 | Roller Assy. (2) |
|
$ 5.84 | |||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 10351005) |
|
$ 8.27 | |||||
| 8 | 71003131 | Bolt, Adjusting (front Roller) (Replaces: 12606103) |
|
Immediately | $ 6.74 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | WP67001098 | Cover-fill Tube (Replaces: 12477501) |
|
$ 8.03 | |||||
| 11 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.02 | |||||
| 12 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 13 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 66.47 | |||||
| 16 | 10354002 | Foot, Brake |
|
Immediately | $ 7.38 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 21.81 | |||||
| 18 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 20 | 67006564 | Screw (4) (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | 67001014 | Cover Hinge (white) (Replaces: 12477601W) |
|
$ 21.28 | |||||
| 22 | 12734404W | Grille, Toe (white) |
|
- | |||||
| 23 | 67007018 | Pin, Bottom Hinge (Replaces: 10200802) |
|
Immediately | $ 8.21 | ||||
| 24 | 12820505 | Pad-acoustic |
|
$ 71.70 | |||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 26 | 12465002WD | Hinge, Bottom (white) |
|
$ 74.86 | |||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 20.34 | |||||
| 28 | W10210978 | Cover, Unit |
|
$ 192.17 | |||||
| 29 | 12561901W | Cover, Lw Hinge (white) |
|
$ 6.37 | |||||
| 30 | W10619951 | Tube, Drain (Replaces: W10210987) |
|
Immediately | $ 42.39 | ||||
| 32 | WPM0274057 | Shim (Replaces: M0274057) |
|
Immediately | $ 8.00 | ||||
| 33 | B5759649 | Gasket |
|
- | |||||
| 34 | WP67006715 | Screw (2) (Replaces: 12992401) |
|
$ 7.19 |
