Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Serviceable Part) Appelez-nous -
2 12724501 Bracket, Control And Lights Special Order $ 57.13

3 12650101 Belt, Damper Appelez-nous -
4 12649601 Tensioner, Belt Appelez-nous -
5 WP67001036 Timer, Defrost   (Replaces: 12566303) In-Stock Immediately $ 150.57

6 W11384469 Switch, Light   (Replaces: C3680310V) In-Stock Immediately $ 39.09

7 12706201 Knob, Front Appelez-nous -
8 W11702858 Housing, Light   (Replaces: 12476401V) Special Order $ 90.11

9 W11679940 Bulb, Light (2)   (Replaces: W10194422V) In-Stock Immediately $ 11.30

10 W11447232 Socket, Light (2)   (Replaces: 12570701V) In-Stock Immediately $ 13.87

11 12724201 Cover, Light Appelez-nous -
12 12990514V Screw (2) Appelez-nous -
13 12694401 Cover, Damper Special Order $ 8.87

14 12650002 Insulation Appelez-nous -
15 12796101 Gear, Damper Assembly Appelez-nous -
16 12694001 Knob Appelez-nous -
17 M0310343 Plug Button Special Order $ 11.20

18 12694309 Logo-light Appelez-nous -
19 12724401 Pan, Timer Light Housing Appelez-nous -
NI 12679901 Harness, Controls (refrigerator) Appelez-nous -

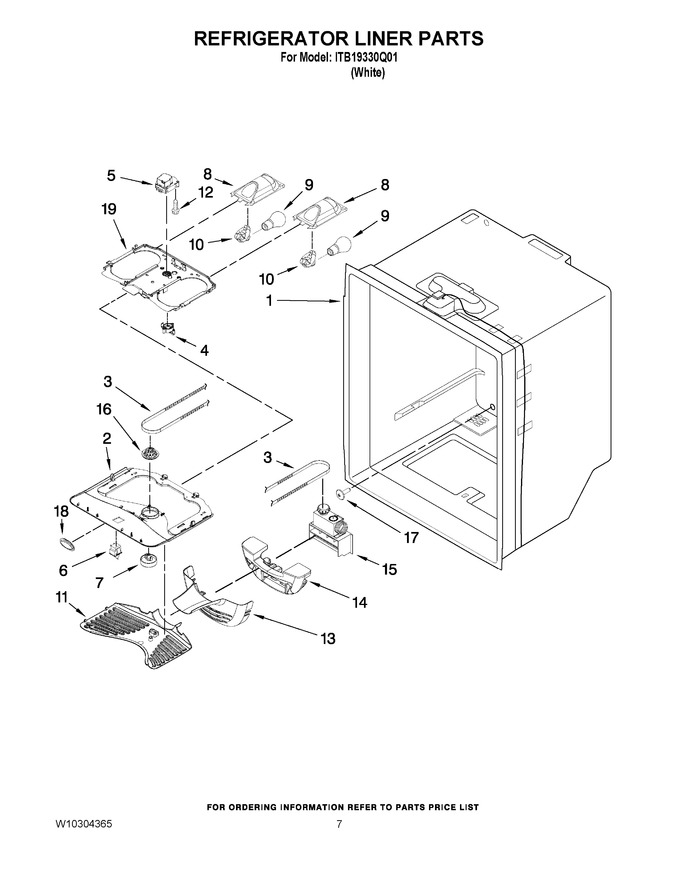

    View Diagram in Separate Window     Print Icon   Print Part List
