SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts

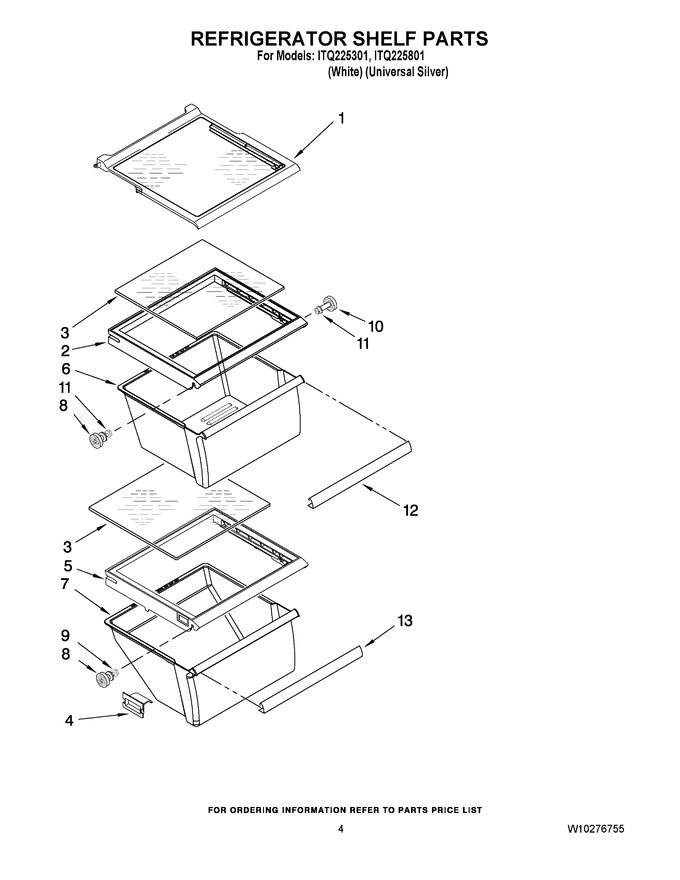

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10276348		Shelf Assembly, Spillguard (3)   (Replaces: 2309524)			Immediately	$ 223.91
2	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 291.29
3	W10864399		Glass, Cover   (Replaces: 2179259)				$ 220.98
4	2179350		Deflector				$ 81.80
5	W10508993		Cover, Meat Pan   (Replaces: 2311726)				$ 291.29
6	WP2188661		Crisper Pan   (Replaces: 2188653)			Immediately	$ 162.07
7	WP2188664		Meat Pan   (Replaces: 2188654)			Immediately	$ 85.30
8	W11223328		Stud Assembly   (Replaces: W10173126)			Immediately	$ 14.07
9	WP3-24004-109		Screw   (Replaces: W10191954)				$ 8.05
10	W11527119		Stud Assembly   (Replaces: W10173127)		Appelez-nous	-
11	W10191952		Screw				$ 5.65
12	WP2179234		Trim, Handle   (Replaces: 2179234)				$ 84.35
13	WP2179234		Trim, Handle   (Replaces: 2255592)				$ 84.35

    View Diagram in Separate Window       Print Part List
