01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

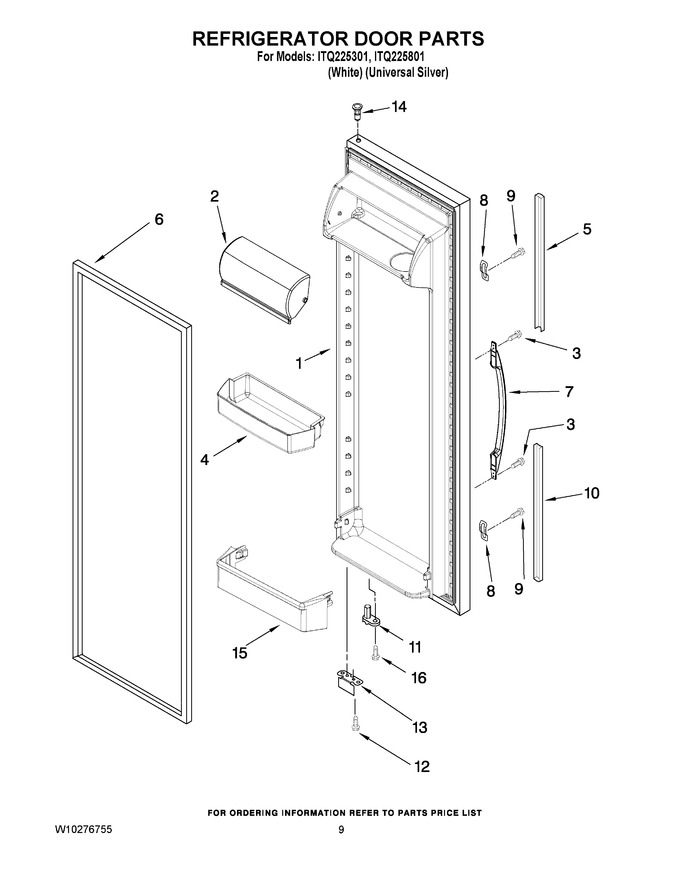

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309598W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2309598US		Refrigerator Door (includes Item 6) (universal Silver)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WP489491		Screw (4)   (Replaces: 489491)				$ 7.30
4	WP2187172		Door Bin (3)   (Replaces: 2187172)			Immediately	$ 45.09
5	2194706W		Extension, Handle Top (white)				$ 44.81
5	2194706B		Extension, Handle Top (black)				$ 44.29
6	2159073		Door Gasket (mist Beige)   (Replaces: 2309600)				$ 333.19
6	2159081		Door Gasket (black Magnetic)   (Replaces: 2309653)				$ 335.58
7	2304413W		Handle, Center (white)		Appelez-nous	-
7	2304413B		Handle, Center (black)		Appelez-nous	-
8	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
9	WP3400852		Screw (4)   (Replaces: 3400852)				$ 10.33
10	2194705W		Extension, Handle Bottom (white)				$ 48.88
10	2194705B		Extension, Handle Bottom (black)				$ 47.36
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
13	W10185570		Bracket, Door Stop Chrome				$ 11.59
14	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
14	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
