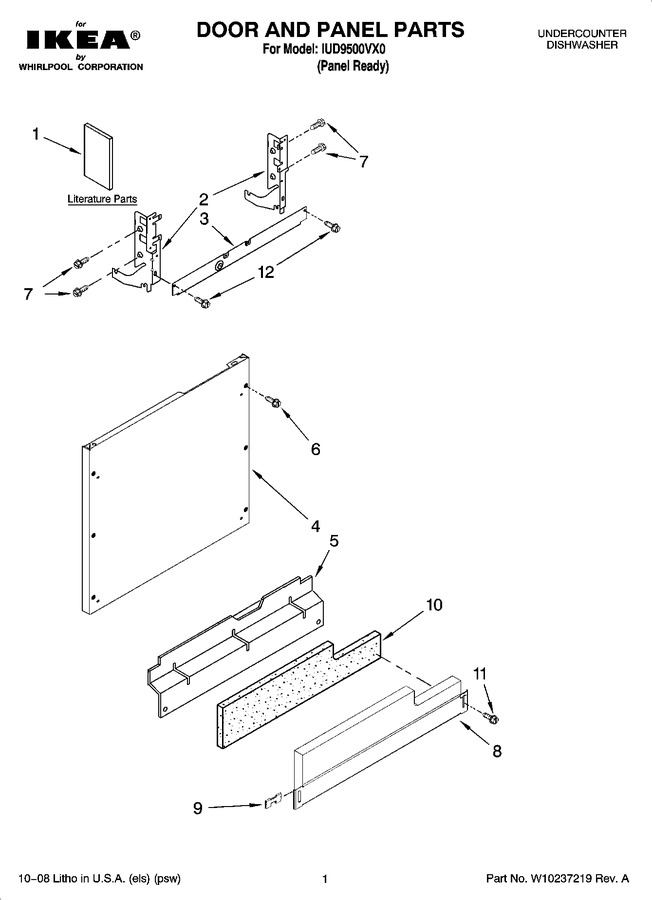

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm And Strainer Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10199581		Guide, Use & Care Spanish		Appelez-nous	-
1	W10199609		Instructions, Installation		Appelez-nous	-
1	W10199568		Energy Guide		Appelez-nous	-
1	W10199580		Guide, Use & Care English/french		Appelez-nous	-
1	W10130990		Tech Sheet		Appelez-nous	-
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 130.98
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 130.98
3	8268983		Stiffener, Door				$ 38.77
4	W11113792		Panel Front   (Replaces: 8535133)			Immediately	$ 332.61
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 38.79
6	WPW10348409		Screw   (Replaces: 3369051)			Immediately	$ 7.76
7	WP3400071		Screw Door Assembly   (Replaces: 3400071)				$ 7.82
8	W10871196		Toe Panel (includes 9 & 10) (black)   (Replaces: W10205336)				$ 165.75
9	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 10.68
10	W10831329		Insulation Toe Panel   (Replaces: W10073540)			Immediately	$ 40.71
11	WP302868		Screw   (Replaces: 302868)			Immediately	$ 7.75
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
