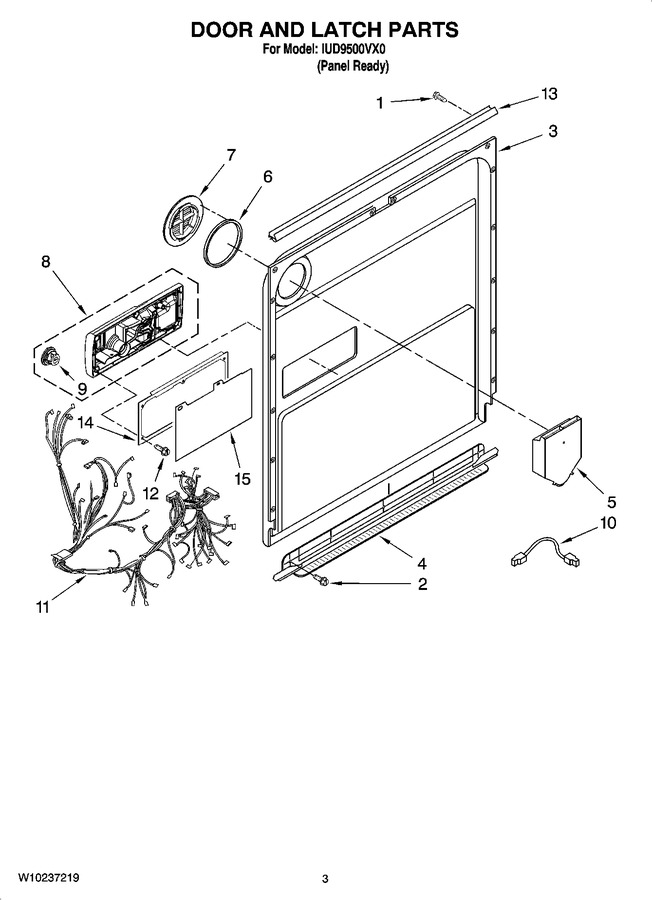

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw, Door (Replaces: 3369051) |
|
Immediately | $ 8.20 | ||||
| 2 | W11631670 | Screw (Replaces: 8281217) |
|
$ 14.72 | |||||
| 3 | W10056249 | Inner Door Mastic Assembly (also Orderitem 6) |
|
$ 173.12 | |||||
| 4 | WP8268937 | Inlet, Air (Replaces: 8268937) |
|
Immediately | $ 58.29 | ||||
| 5 | WP8572611 | Vent Assembly (also Orderitem 6) (Replaces: 8572611) |
|
$ 210.51 | |||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 63.50 | ||||
| 7 | WP8545536 | Deflector, Vent (also Order Item 6) (Replaces: 8545536) |
|
$ 83.29 | |||||
| 8 | WPW10224430 | Dispenser, Assembly (Replaces: 8564772) |
|
Immediately | $ 204.79 | ||||
| 9 | WP8564929 | Knob, Rinse Aid (Replaces: 8564929) |
|
Immediately | $ 27.51 | ||||
| 10 | 8545608 | Harness, Vent Motor |
|
$ 152.37 | |||||
| 11 | W10077950 | Wiring Harness |
|
$ 175.88 | |||||
| 12 | WPW10177098 | Screw (Replaces: 8281154) |
|
Immediately | $ 8.02 | ||||
| 13 | WP8535660 | Seal,console/door (Replaces: 8535660) |
|
$ 186.01 | |||||
| 14 | WPW10462232 | Bracket, Dispenser (Replaces: 8535637) |
|
$ 37.79 | |||||
| 15 | WP8531865 | Shield, Dispenser (Replaces: 8531865) |
|
$ 113.15 |
