Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 W10175967 Escutcheon, Meat Pan Control Special Order $ 77.20

3 2182757 Slide Meat Pan Control Special Order $ 75.15

4 2257741 Louver Appelez-nous -
5 W11239891 Light Lens   (Replaces: W10166019) Special Order $ 101.52

6 8009 Light Bulb   (Replaces: 527949) In-Stock Immediately $ 18.67

7 WP488488 Screw (2)   (Replaces: 489290) Special Order $ 8.52

8 WPW10151374 Air Diffuser Cover   (Replaces: W10151374) In-Stock Immediately $ 104.77

9 2311612 Clip, Control Box (2) Appelez-nous -
10 WPW10151374 Air Diffuser Assembly   (Replaces: 2209753) In-Stock Immediately $ 104.77

11 2150331 Cover, Conduit Special Order $ 25.62

12 W10759522 Screw   (Replaces: 486298) Special Order $ 8.24

13 4387478 Socket   (Replaces: 2162085) In-Stock Immediately $ 115.67


    View Diagram in Separate Window     Print Icon   Print Part List

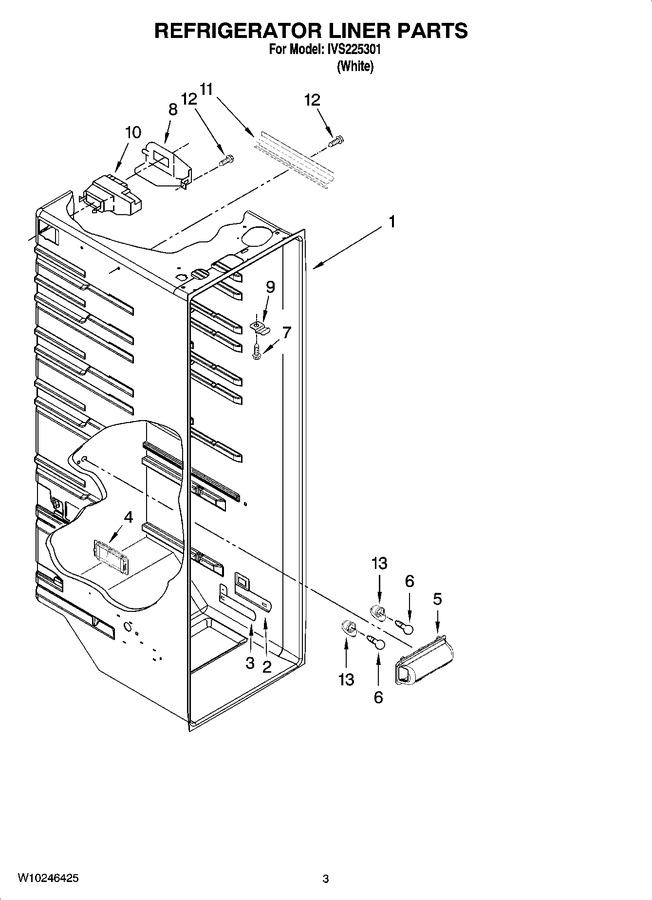

Diagram for IVS225301
