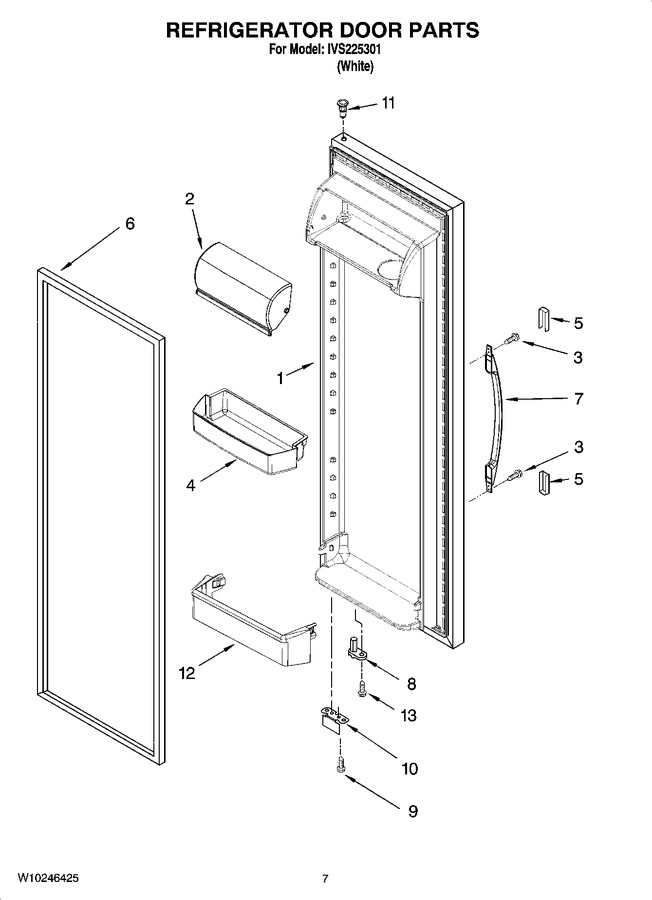

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2309622W | Refrigerator Door (includes Item 6) (white) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | WP489491 | Screw (4) (Replaces: 489491) |
|
$ 7.30 | |||||
| 4 | WP2187172 | Door Bin (3) (Replaces: 2187172) |
|
Immediately | $ 45.09 | ||||
| 5 | 2194272W | Trim, Handle (white) |
|
$ 5.85 | |||||
| 6 | 2159073 | Door Gasket (mist Beige Magnetic) (Replaces: 2309600) |
|
$ 333.19 | |||||
| 7 | 2304413W | Handle, Center (white) |
|
- | |||||
| 8 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 9 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 10 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 42.79 | |||||
| 11 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 12 | WP2156022 | Trivet (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 13 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 |
