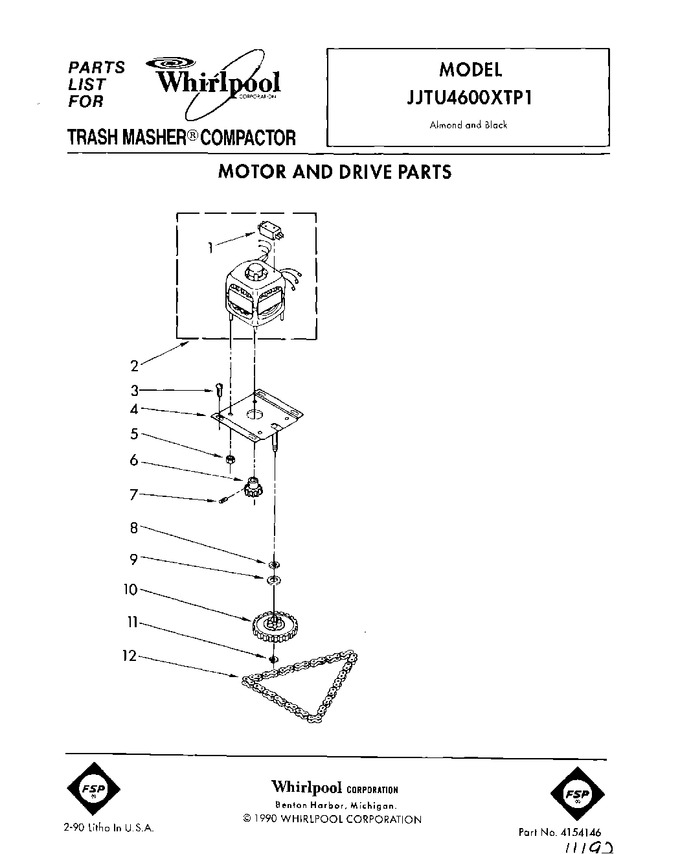

01 - Motor And Drive, Lit/optional
02 - Frame
03 - Powerscrew And Ram
04 - Container
05 - Cabinet And Control
06 - Accessory
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10439651 | Switch, Motor (Replaces: 777710) |
|
$ 343.19 | |||||
| 2 | W10439651 | Motor, Drive (includes No.1) (Replaces: 780360) |
|
$ 343.19 | |||||
| 3 | 776593 | Screw. 1/4-20 X 1/2 (4) |
|
- | |||||
| 4 | 776327 | Plate, Motor |
|
- | |||||
| 5 | WP776338 | Locknut, 10-32 (4) (Replaces: 776338) |
|
$ 20.32 | |||||
| 6 | 882699 | Gear, Drive (Replaces: 4149667) |
|
$ 123.55 | |||||
| 7 | WP454512 | Pin, Slotted Spring (Replaces: 454512) |
|
$ 7.92 | |||||
| 8 | 776035 | Washer, Wave |
|
$ 14.05 | |||||
| 9 | W11214485 | Washer, Thrust (Replaces: 297462) |
|
$ 14.24 | |||||
| 10 | 882699 | Gear, Driven (Replaces: 777124) |
|
$ 123.55 | |||||
| 11 | WP776036 | Clip, Ring (Replaces: 776036) |
|
$ 7.80 | |||||
| 12 | 780477 | Chain, Drive |
|
$ 217.07 | |||||
| 12 | 4152077 | Harness, Wiring |
|
- | |||||
| LIT4152836 | Guide, Use And Care (english) |
|
- | ||||||
| LIT4154146 | List, Repair Parts |
|
- | ||||||
| LIT4152814 | Sheet, Tech And Wiring Diagram (french) |
|
- | ||||||
| LIT4152813 | Sheet, Tech And Wiring Diagram (english) |
|
- | ||||||
| LIT4152820 | Instructions, Installation (french) |
|
- | ||||||
| LIT4152819 | Instructions, Installation (english) |
|
- | ||||||
| LIT4152806 | Guide, Use And Care (french) |
|
- |
