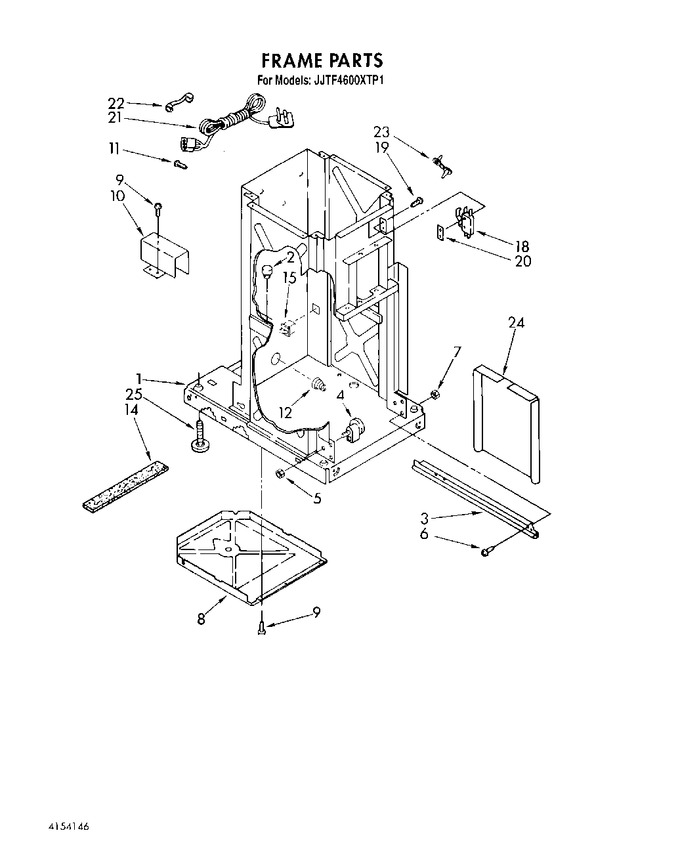

| 1 | N/A | Frame (not A Serviceable Part) |
|
- | |||||
| 2 | 775643 | Bumper, Ram (4) |
|
- | |||||
| 3 | 00608090 | Frame, Slide (r.h.) (Replaces: 608090) |
|
$ 47.22 | |||||
| 3 | 00608091 | Frame, Slide (l.h.) (Replaces: 608091) |
|
$ 48.96 | |||||
| 4 | 882688 | Bearing, Roller (2) (Replaces: 4153788) |
|
$ 21.19 | |||||
| 5 | WP776356 | Locknut, 3/8-24 (2) (Replaces: 776356) |
|
$ 8.53 | |||||
| 6 | WP486754 | Screw, 6-32 X 3/8 (4) (Replaces: 777458) |
|
$ 8.01 | |||||
| 7 | 776188 | Nut, 6-32 (4) |
|
- | |||||
| 8 | WP780437 | Pan, Bottom (Replaces: 608022) |
|
$ 316.61 | |||||
| 9 | WP489069 | Screw, 8 X 1/2ab (Replaces: 776076) |
|
Immediately | $ 8.40 | ||||
| 10 | 608375 | Shield, Slide Track (2) |
|
- | |||||
| 11 | WP488234 | Screw, 8-32 X 5/16 (Replaces: 777070) |
|
$ 7.08 | |||||
| 12 | WP777180 | Spring, Container (Replaces: 777180) |
|
$ 97.93 | |||||
| 14 | 776780 | Barrier, Glass |
|
- | |||||
| 15 | W11243179 | Switch, Drawer Safety (Replaces: 4149377) |
|
$ 74.74 | |||||
| 18 | WP777811 | Switch, Top Limit & Directional (Replaces: 777811) |
|
Immediately | $ 116.62 | ||||
| 19 | 777849 | Screw, 6-20 X 1 (2) |
|
$ 7.36 | |||||
| 20 | 777850 | Plate, Nut |
|
$ 77.13 | |||||
| 21 | 937360 | Cord, Service |
|
- | |||||
| 22 | W11820597 | Bushing, Cord (Replaces: 776119) |
|
- | |||||
| 23 | W11705832 | Clamp, Wire (Replaces: 777035) |
|
- | |||||
| 24 | 780412 | Insulation, Inner Panel (2) |
|
- | |||||
| 25 | WPW10001130 | Foot, Leveler (4) (Replaces: 775526) |
|
Immediately | $ 7.80 |
