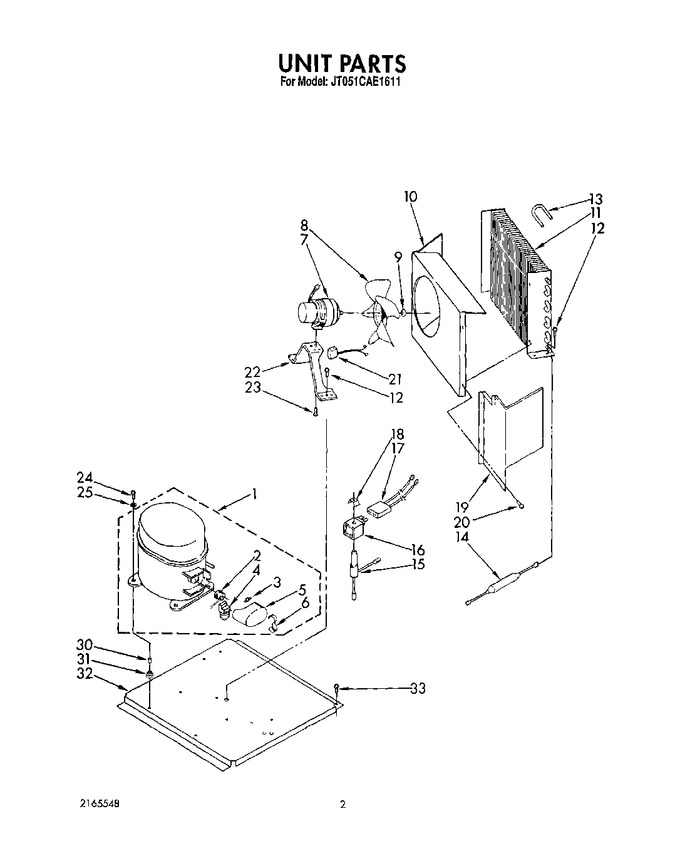

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 758593 | Compressor, Service Kit |
|
- | |||||
| 2 | 758638 | Overload (production) |
|
- | |||||
| 2 | 589231 | Overload (service) |
|
- | |||||
| 3 | 549086 | Spring, Overload (service) |
|
- | |||||
| 4 | 758637 | Relay, Start (production) |
|
- | |||||
| 4 | 549337 | Relay, Start (service) |
|
- | |||||
| 5 | 1108115 | Cover, Terminal (production) |
|
- | |||||
| 5 | 549336 | Cover, Terminal (service) |
|
- | |||||
| 6 | 549342 | Retainer, Cover (service) |
|
- | |||||
| 6 | 938384 | Retainer, Cover (production) |
|
- | |||||
| 7 | 1108089 | Motor, Fan (includes No. 23) |
|
- | |||||
| 8 | 572728 | Blade, Fan (includes And No.9) |
|
- | |||||
| 9 | 681650 | Nut, Hex 1/4-20 |
|
- | |||||
| 10 | 757955 | Shroud, Condenser |
|
- | |||||
| 11 | 756299 | Condenser |
|
- | |||||
| 12 | 681305 | Screw, 1/4-20 X 1/2 |
|
- | |||||
| 13 | 756298 | Accumulator |
|
- | |||||
| 14 | W10843121 | Drier, Tube (Replaces: 755649) |
|
Immediately | $ 52.57 | ||||
| 15 | 598086 | Valve, Solenoid Coil |
|
- | |||||
| 16 | 587970 | Coil, Solenoid |
|
- | |||||
| 17 | 587971 | Harness, Wiring (solenoid Coil) |
|
- | |||||
| 18 | 564234 | Retainer, Solenoid Coil |
|
- | |||||
| 19 | 758811 | Deflector, Air |
|
- | |||||
| 20 | WP90767 | Screw, 8-32 X 3/8 (4) (Replaces: 681167) |
|
Immediately | $ 7.82 | ||||
| 21 | 585219 | Harness, Wiring (fan Motor) |
|
- | |||||
| 22 | 560817 | Bracket, Fan Motor |
|
- | |||||
| 23 | 489199 | Screw, 8-36 X 1/2 (4) |
|
- | |||||
| 24 | 680233 | Screw, 5/16-18 X 1 1/4`` |
|
- | |||||
| 25 | 595230 | Washer, Flat (4) |
|
- | |||||
| 30 | 585564 | Sleeve (4) |
|
- | |||||
| 31 | 596355 | Grommet (4) |
|
- | |||||
| 32 | 758810 | Base, Unit |
|
- | |||||
| 33 | 680811 | Screw, 10-24 X 1/2 (4) |
|
- | |||||
| LIT758860 | Sheet, Tech |
|
- | ||||||
| LIT2165548 | List, Repair Parts |
|
- | ||||||
| LIT759231 | Instructions, Installtion |
|
- | ||||||
| 758846 | Wiring, Diagram |
|
- | ||||||
| LIT2165451 | Guide, Use And Care |
|
- |
