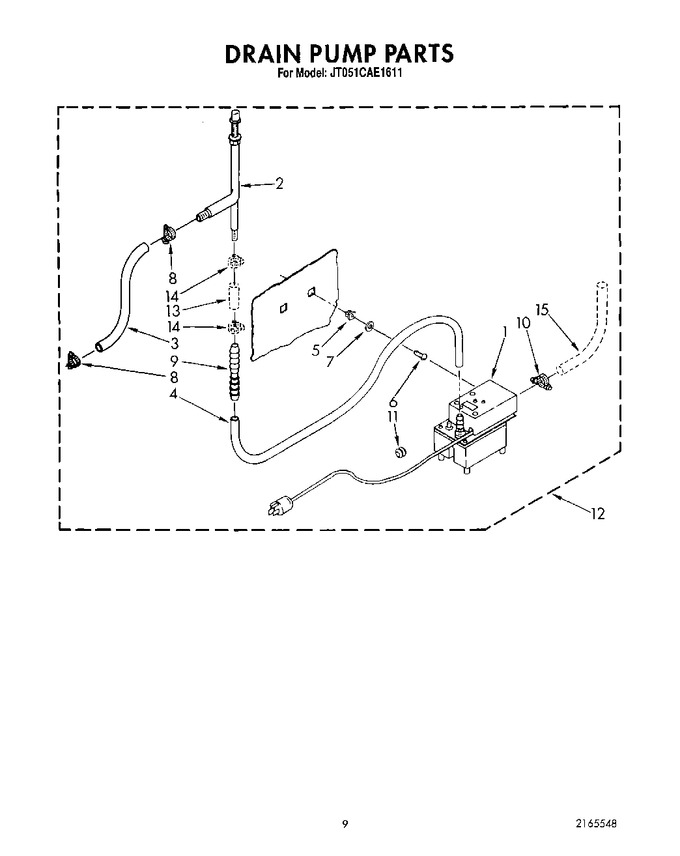

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 759008 | Pump, Condensate Drain |
|
- | |||||
| 2 | WP300096 | Air Gap (Replaces: 300096) |
|
$ 78.44 | |||||
| 3 | 770966 | Hose, 7/8 I.d. X 20.0`` (air Gap To Discharge) |
|
- | |||||
| 4 | 758915 | Hose, 3/8 I.d. X 14 3/8`` (pump To Air Gap) |
|
- | |||||
| 5 | 596807 | Grommet, Mtg (2) |
|
- | |||||
| 6 | W10759522 | Screw, S.m. No.8-15 X 3/4`` (2) (Replaces: 486298) |
|
$ 8.24 | |||||
| 7 | 486713 | Washer (2) |
|
- | |||||
| 8 | 596572 | Clamp, Hose (2) |
|
- | |||||
| 9 | 758918 | Connector, Hose |
|
- | |||||
| 10 | WP285655 | Clamp, Hose (2) (Replaces: 65349) |
|
Immediately | $ 8.81 | ||||
| 11 | 758919 | Bushing, Cord |
|
- | |||||
| 12 | 759009 | Pump, Condensate Drain (complete Kit) |
|
- | |||||
| 13 | 593577 | Hose, 5/8 X 4`` (connector To Air Gap) |
|
- | |||||
| 14 | 596023 | Clamp, Hose (2) |
|
- | |||||
| 15 | 593369 | Hose, 1/2 I.d. X 12`` (bin To Pump) |
|
- |
