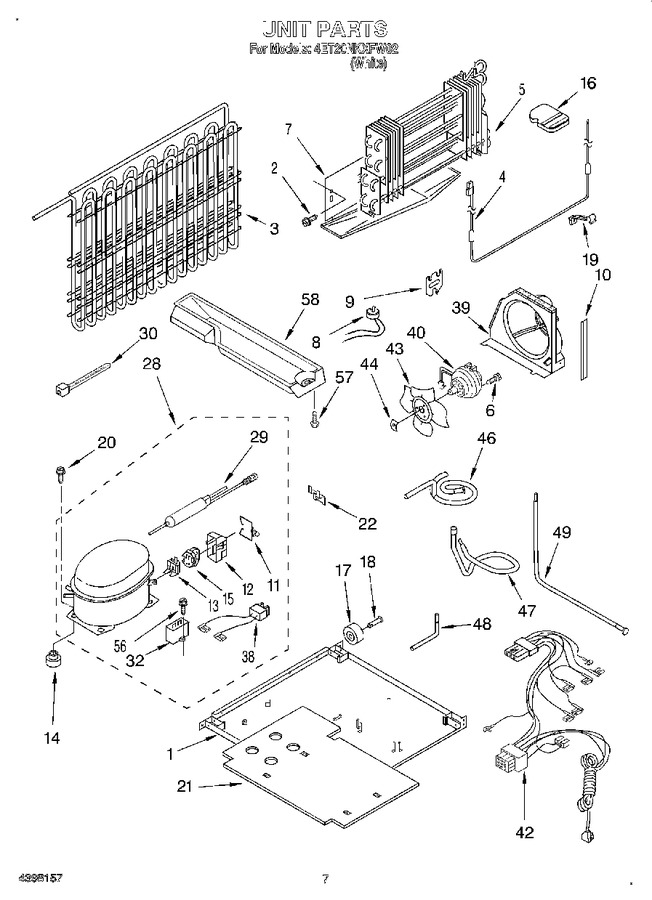

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2188167		Plate, Unit Mounting		Appelez-nous	-
2	WP489478		Screw   (Replaces: 489478)				$ 7.75
3	2195400		Condenser		Appelez-nous	-
4	2166872		Heater, Defrost		Appelez-nous	-
5	2195390		Evaporator Assy.				$ 228.01
6	WP8281196		Screw   (Replaces: 489494)			Immediately	$ 7.19
7	2172620		Drain Pan		Appelez-nous	-
8	WP2182381		Defrost Bimetal   (Replaces: 2182381)				$ 120.14
9	2176301		Bracket, Heater				$ 6.37
10	2163780		Extension, Air Baffle		Appelez-nous	-
11	489435		Cover, Strap		Appelez-nous	-
12	WP2162358		Cover   (Replaces: 2162358)				$ 90.75
13	2169410		Overload				$ 100.28
14	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
15	WP2262184		Relay   (Replaces: 2154755)				$ 117.58
16	2189906		Support Block		Appelez-nous	-
17	4388239		Roller (2)   (Replaces: 836054)			Immediately	$ 72.37
18	W11594405		Rivet   (Replaces: 981126)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw   (Replaces: 489373)				$ 7.42
21	2198740		Cover, Unit				$ 36.19
22	2166683		Clip		Appelez-nous	-
28	482801		Installation Kit				$ 119.50
28	876765		Tube Kit			Immediately	$ 86.33
28	2169447		Compressor (includes Items 12, 13, 15, 29, 32, 38 & 56) (also Order)		Appelez-nous	-
29	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 52.57
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.90
32	WP2201147		Capacitor   (Replaces: 2154718)				$ 128.97
38	WP2172890		Wire Assembly   (Replaces: 2172890)				$ 8.10
39	2198921		Air Baffle		Appelez-nous	-
40	8201703		Motor, Condenser   (Replaces: 2198747)				$ 354.00
42	2200841		Wire Assy. Unit		Appelez-nous	-
43	2190685		Blade, Fan				$ 52.00
44	WP486692		Nut   (Replaces: 486692)				$ 7.82
46	2179856		Tube, Discharge		Appelez-nous	-
47	2179854		Tube, Suction		Appelez-nous	-
48	2154109		Tube, Process				$ 72.63
49	2174670		Tube, Condenser To Heat Loop		Appelez-nous	-
56	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
57	489462		Screw		Appelez-nous	-
58	482278		Start Kit		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 130.71
58	876764		Valve, Access(3/16``)			Immediately	$ 91.35
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
58	2189433		Tray, Evaporator		Appelez-nous	-
58	978026		Valve, Access (5/16``)			Immediately	$ 128.09
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
58	978028		Valve, Access (1/2)		Appelez-nous	-
