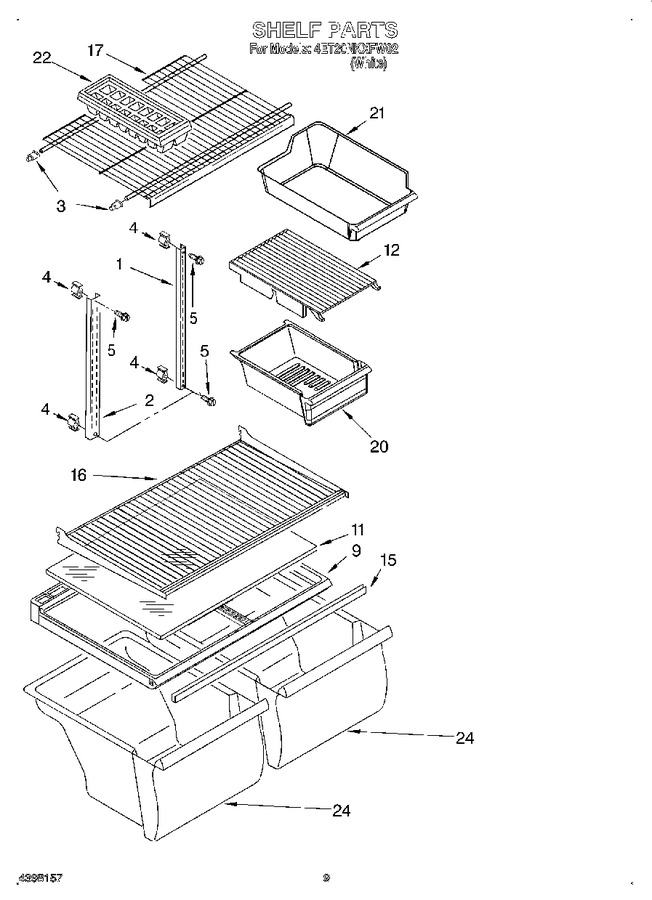

05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163756		Shelf, Ladder (2)		Appelez-nous	-
2	2163826		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
4	520965		Screw, Support				$ 31.35
5	W11544659		Screw   (Replaces: 489415)				$ 14.35
9	WP2314549		Crisper Cover   (Replaces: 2195344)				$ 279.10
11	WP2176225		Insert, Crisper Cover   (Replaces: 2176225)				$ 264.41
12	2163848		Cover, Meat Pan				$ 71.41
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	2195398		Shelf, Full Cantilever (2)		Appelez-nous	-
17	2184667		Shelf, Freezer		Appelez-nous	-
20	2169919		Pan, Meat		Appelez-nous	-
21	2254352A		Ice Bucket   (Replaces: 2176219)				$ 58.64
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
24	W10854037		Pan, Crisper   (Replaces: 2166256)			Immediately	$ 179.19
100	2182576		Feaaturepak (includes 12,20) Also See Dr. Pg.		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2198832		Service & Wiring Sheet		Appelez-nous	-
	LIT2195606		Energy Label		Appelez-nous	-
	LIT2195465		Use & Care Guide		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
