SELECT A DIAGRAM

01 - Cover Sheet


02 - Case, Gearing And Planetary Unit Parts

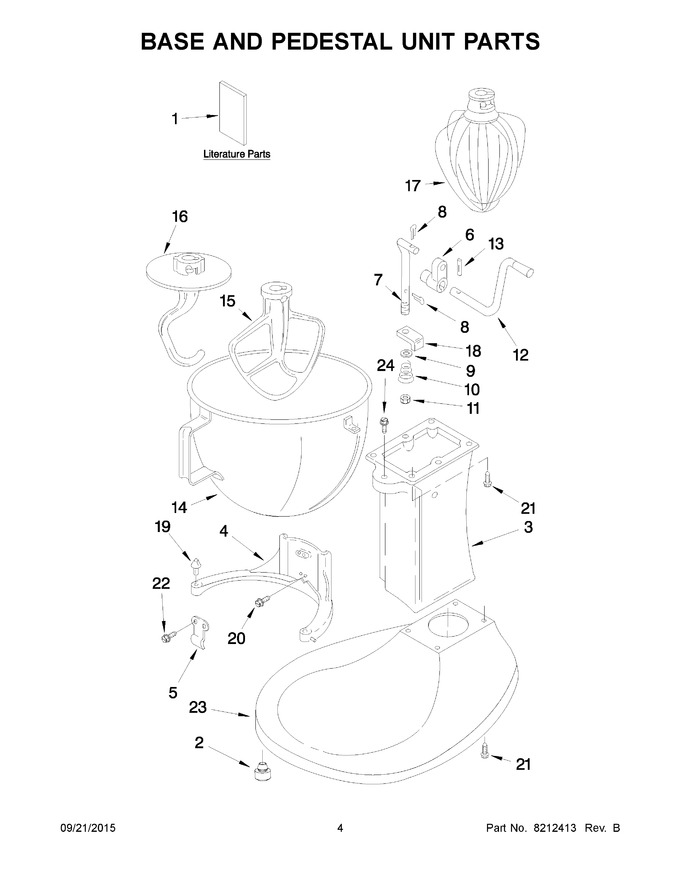

03 - Base And Pedestal Unit Parts


04 - Motor And Control Unit Parts


05 - Color Variation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP9708649		Foot   (Replaces: 9708649)			Immediately	$ 4.79
3	N/P		Column Assembly (refer To Color Variation Parts Page)		Appelez-nous	-
4	N/P		Bowl Support (refer To Color Variation Parts Page)		Appelez-nous	-
5	WP3182857		Latch, Bowl Spring   (Replaces: 3182857)			Immediately	$ 5.29
6	WP241764		Arm, Bowl Lift   (Replaces: 241764)			Immediately	$ 8.57
7	W10598834		Rod, Bowl Lift   (Replaces: 4159620)				$ 29.90
8	WP9704608		Pin, Cotter   (Replaces: 9704608)				$ 4.37
9	W11708396		Washer   (Replaces: WS00323)				$ 4.60
10	4159622		Spring, Lift Rod   (Replaces: 9237)			Immediately	$ 4.70
11	8533907		Nut				$ 24.83
12	W11812045		Handle, Bowl Lift   (Replaces: 9079)				$ 10.85
13	WP9703442		Pin, Roll   (Replaces: 9703442)				$ 4.28
14	W10802050		Bowl (5 Qt)   (Replaces: 4162116)				$ 122.88
15	W10807813		Beater, Flat   (Replaces: 9707670)			Immediately	$ 32.13
16	WPW10674621		Hook, Dough   (Replaces: 9707672)				$ 51.22
17	WPW10731415		Whip, Wire   (Replaces: 9704309)			Immediately	$ 37.93
18	240169		Bracket, Bowl Lift			Immediately	$ 69.83
19	WP240185		Pin, Retaining Bowl   (Replaces: 240185)				$ 4.50
20	W10861883		Screw   (Replaces: 3400018)			Immediately	$ 4.94
21	WP4162403		Screw, Special   (Replaces: 240912)				$ 5.38
22	WP4159193		Screw   (Replaces: 3400024)				$ 5.07
23	N/P		Base & Foot Assembly (refer To Color Variation Parts Page)		Appelez-nous	-
24	3182904		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
