01 - Cover Sheet
02 - Case, Gearing And Planetary Unit Parts
03 - Base And Pedestal Unit Parts
04 - Motor And Control Unit Parts

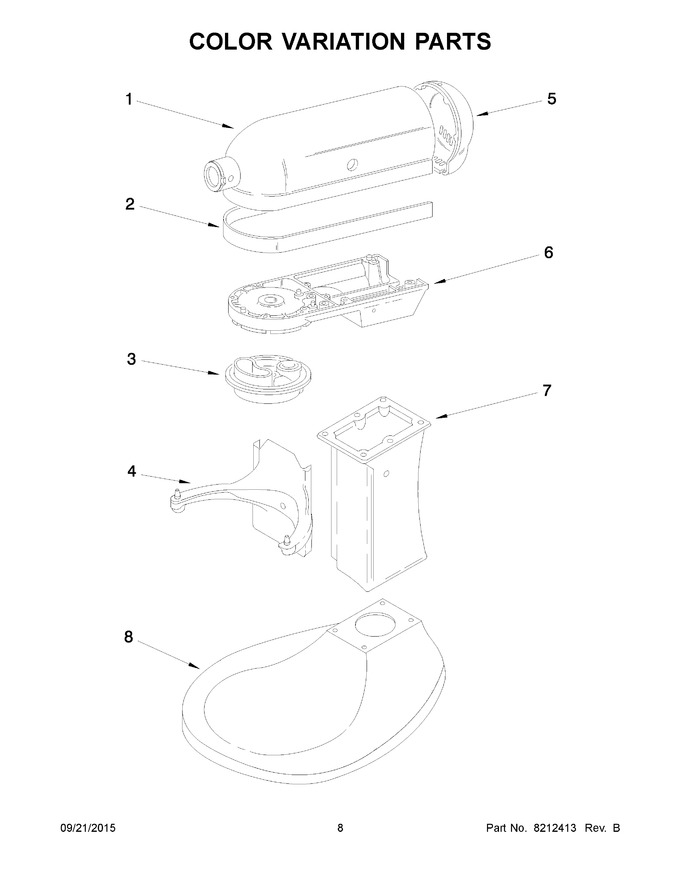

05 - Color Variation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP240291-13 | Motor Housing (onyx Black) (Replaces: 240291-13) |
|
$ 101.67 | |||||
| 2 | W11230105 | Trim Band (black) (Replaces: 9702637) |
|
- | |||||
| 3 | W11199173 | Planetary (onyx Black) (Replaces: 240286-16) |
|
$ 32.71 | |||||
| 4 | 3179311 | Bowl Support & Pins (onyx Black) |
|
- | |||||
| 5 | 240253-14 | End Cover (onyx Black) |
|
$ 48.42 | |||||
| 6 | 240354-43 | Lower Gearcase (onyx Black) (Replaces: 4173582) |
|
- | |||||
| 7 | 240148-15 | Column (onyx Black) (Replaces: 4173585) |
|
- | |||||
| 8 | 3179292 | Base & Foot Assembly (onyx Black) |
|
- |
