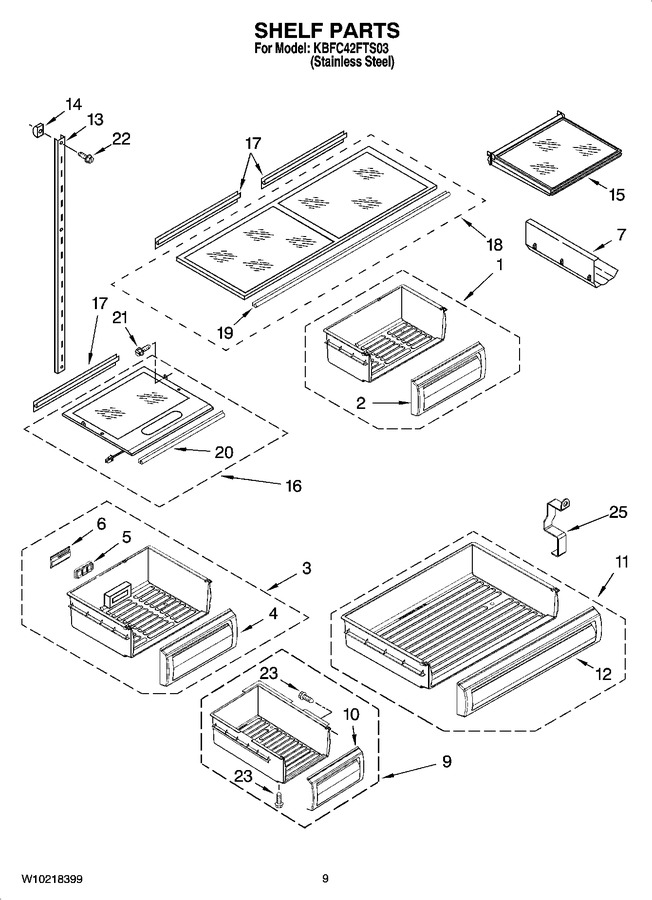

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2268171		Crisper Pan Assembly (includes 2) (right)		Appelez-nous	-
1	2268173		Crisper Pan Assembly (includes 2) (left)				$ 75.21
2	WP2256247		Front, Crisper Pan   (Replaces: 2256247)				$ 133.22
3	2317940		Deli Pan Assembly (incl. 4, 5 & 6) (left)		Appelez-nous	-
3	2317941		Deli Pan Assembly (incl. 4, 5 & 6) (right)		Appelez-nous	-
4	WP2256365		Front, Deli Pan   (Replaces: 2256365)				$ 173.51
5	2307810		Duct, Deli Pan		Appelez-nous	-
6	2317939		Air Deflector		Appelez-nous	-
7	W10777924		Rack, Wine   (Replaces: 2179404)				$ 24.78
9	2306174		Ice Pan Assembly (includes 10)				$ 147.41
10	2306175		Front, Ice Pan				$ 95.96
11	2327511		Freezer Pan Assembly (includes 12)		Appelez-nous	-
12	WP2256367		Front, Freezer Pan   (Replaces: 2256367)				$ 182.76
13	2327314		Ladder, Shelf (4)		Appelez-nous	-
14	520965		Support, Ladder				$ 31.35
15	2268246		Shelf (4)				$ 174.09
16	W10757993		Cover, Deli Bin (right)   (Replaces: 2320667)				$ 852.43
16	W10757973		Cover, Deli Bin (left)   (Replaces: 2320665)				$ 808.62
17	2309400		Gasket, Rear		Appelez-nous	-
18	W11430640		Cover, Crisper   (Replaces: 2309045)				$ 342.71
19	2309396		Gasket, Front (crisper Cover)		Appelez-nous	-
20	2309395		Gasket, Front (2) (deli Cover)		Appelez-nous	-
21	W10825422		Screw   (Replaces: 8281251)				$ 11.36
22	2006475		Screw,		Appelez-nous	-
23	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
25	2327394		Locking Clip, Bin (left)		Appelez-nous	-
25	2327393		Locking Clip, Bin (right)				$ 61.29
